Industrial PC

C6 e32

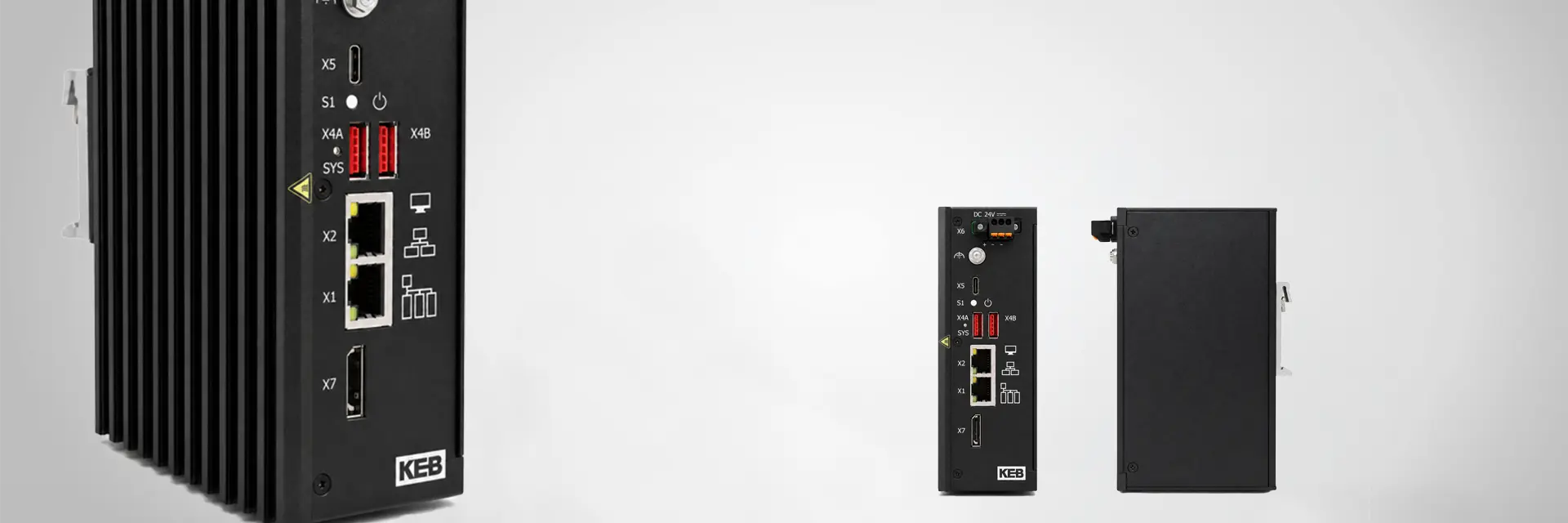

The C6 E32 Rail is a compact and robust industrial PC designed for automation tasks. Thanks to its latest Intel® processor, it offers strong computing power and long-term industrial availability – ideal for real-time applications, machine learning and IIoT processes.

The design is based on a Linux operating system and features an open microservices architecture. The container-based technology allows various software functions to be integrated and organised via NOA. The system is future-proofed through the use of the latest industrial technology – ensuring long-term availability. The real-time-capable controller is programmable via IEC 61131 and enables synchronous and coordinated movement of machines via the existing EtherCAT master.

With its fanless, industrial-grade design, the C6 E32 Rail operates reliably even in harsh environmental conditions and ensures a long service life and high availability.

HIGHLIGHTS

  • Fanless, compact design
  • Powerful processor
  • Extensive connectivity and expandability
  • PLC, motion control, HMI, NOA, remote maintenance
Icon with writing pen in speech bubble - marking the contact option via the contact form

DO YOU HAVE ANY QUESTIONS? WE WILL BE HAPPY TO HELP YOU!

Simply send us a message via our contact form.

Contact us now

TECHNICAL DATA C6 E32 RAIL

CPU

Processor Intel Atom® x7433RE (Quad-Core 1.5 / 3.4 GHz Turbo)
System memory RAM LPDDR5 8 GB
Graphic controller Intel® UHD Graphics 4096 x 2160 @ 60Hz

Memory

Flash 20 GB eMMC High-Endurance Flash
Retain Optional: PLP Retain / Persistant 256 kB
TPM TPM 2.0
RTC RTC (3 V lithium battery)

Operating Data

Power supply 9 … 36 V DC
Operating environment Extended -40 … 60 °C (93 % RH at 40 °C non-condensing)
Storage conditions -40 … +85 °C (93 % RH at 40 °C non-condensing)
Protection class IP20
Cooling Passive cooling

MECHANICAL SPECIFICATIONS

Dimensions 137 x 50 x 95 mm (W x H x D)
Mounting DIN RAIL

Operating System

Linux

APPROVALS

CE, UL 61010-1 (Pending), UKCA

Interfaces

Ethernet / EtherCAT 2x 2.5 GbE Intel® I226-V/IT
USB 2x USB 3.2 (Type A)
USB-C 1x USB-C
Graphic Port 1x DisplayPort
Button/LED Power Button & Status LED
Expansions M.2 expansions on request
