Electromobility

One of the most important keys to a more sustainable future is the rapid implementation of the mobility transition. And this is not without good reason as in the European Union, transport is responsible for a significant share of all CO2 emissions and is the only area in which greenhouse gas emissions have increased in the past three decades. This is precisely where electromobility comes into play, laying the foundations for climate-neutral traffic. The number of newly registered electric vehicles is continuously increasing – and with it, the need for sustainable solutions for operating auxiliary systems such as air-conditioning and air compressors or hydraulic and power steering pumps. KEB Automation provides users with the necessary drives, controls and software solutions out of one hand.

The T6 APD provides a scalable and modular DC-AC inverter system with integrated power electronics, an intelligent mobile control unit and EMC filter solutions. It converts direct current from the HV-DC source into alternating current to drive electric motors. In addition, bistable brakes and clutches, for example in pick-up trucks or driverless transport vehicles, enable energy-free engagement/disengagement and hold devices and equipment in place with energy savings of up to 99 percent in battery-powered systems.


  • Electrification of ancillary drives
  • Demand-driven supply and efficient control
  • Motor speed and torque control without encoder feedback
  • Considerable flexibility thanks to application-specific software solutions

Drive solutions for auxiliary drives in e-vehicles

Your contact
Keb sigges thorsten productmanager e mobility

Thorsten Sigges

Product Manager E-mobility

+49 5263 401-287
+49 171 9734056
thorsten.sigges@keb.de

SOLUTIONS FOR THE ELECTRIFICATION OF ANCILLARY DRIVES

KEB offers innovative system solutions for the electrical operation of ancillary systems in vehicles, which noticeably increase efficiency. From power steering pumps, air compressors, air-conditioning and ventilation systems, CO2 heat pumps and transport refrigerating machines to hydraulic pumps, heating units, ePTOs and generator applications – the application scenarios are numerous and the potential for CO2 savings is huge.

Over ten years ago, KEB launched its “E-mobility” project and the product development of the T6 APD modular drive system for the commercial vehicle industry. Today, the T6 APD is optimally tailored to individual customer requirements, and stands out with its cutting-edge technology and drive performance. There is always a focus on modularity, EMC compatibility, safe and flexible connection technology, scalability and innovative software solutions.


Electric drive solutions for commercial vehicles and mobile machinery

Fields of applicationUse-casesDrive solution
Public transportSteering-pumpModular Drive Controller Systems
Municipal vehiclesAir-compressorDC-AC Inverter, 1-6 axes
Last-mile-logisticsAir-conditioningECU - Smart Control
Mobile machineryThermo managementDC EMC Filter
Construction machineryHVAC
Agricultural machineryHydraulic pumpApplication Software
Trucks and trailersGenerator driveAir-Compressor
Ground support equipmentePTOSteering-pump
 RetarderTSC - Torque-Speed-Control
  UDS
  and more

THE POSSIBILITIES OF ELECTRIFICATION IN VEHICLES WITH KEB’S BRAKES AND CLUTCHES

Public transportHolding the hatch (damper) in the open positionElectromagnetic brake
Municipal vehiclesParking brakeSpring-applied brake, bipolare brake
Last mile logisticsHolding access doors in place    Electromagnetic brake
Trucks and trailersSwitching the servo pump on/offSpring-applied clutch, permanent magnet cluch
Mobile machineryParking brakeSpring-applied brake, bipolare brake
Construction machineryEmergency stop of drivesSpring-applied brake, permanent magnet brake
Agricultural machinerySwitching ancillary drives onElectromagnetic clutch
"Aviation"Precise positioning and holdingElectromagnetic brake, Spring-applied brake, permanent magnet brake

Technology

Servopump (hydraulic)

Whether servo steering pumps, servo pumps, hydraulic pumps or just steering, the servo steering pump supports the driver when turning the wheel in the stationary position, manoeuvring or driving at low speeds.

eSERVO APP - software solutions:

  • Sensorless control for PM motors – dynamic speed and torque control
  • Needs-based flow control
  • Adjustable AC motor speed
  • Extended fault diagnostics – CAN error behaviour (warning, stop)
  • High level of efficiency, low energy consumption – increases the range of the electric vehicle
  • Low-noise
  • Compact design, low weight
  • Implementation of manufacturer-specific software solutions
  • Plug & Play

Air compressor

Generates compressed air to supply all pneumatic systems (brakes, pneumatic doors, suspension systems, etc.) in mobile applications.

eAIR APP software solution:

  • Sensorless control for PM motors – dynamic speed and torque control
  • Adjustable AC inverter motor speed
  • Extended fault diagnostics – CAN error behaviour (warning, stop)
  • High level of efficiency, low energy consumption – increases the range of the electric vehicle
  • Low noise and low-vibration
  • Compact design, low weight
  • Implementation of manufacturer-specific software solutions
  • Plug & Play

Heat management

CO2 heat pumps are responsible for a holistic approach to thermal management in vehicles. They provide environmentally-friendly and energy-efficient heating and cooling energy and, for example, can heat up the passenger compartment or cool down the battery.

Heat pump – HEAT APP software solution

  • Sensorless control for PM motors – dynamic speed and torque control
  • Adjustable AC motor speed
  • Environmentally-friendly thermal management, e.g. for electric buses
  • Efficient system solution – increases the range of the electric vehicle
  • Implementation of manufacturer-specific software solutions
  • Plug & Play

T6 MCU Mobile Control System

MCU software ensures complete operation of the entire system. Download files can also be saved on the MCU’s file system.

  • MCU (Main Control Unit) – as an embedded control system (PLC)
  • IEC 61131-3 programming environment, CODESYS-based, freely programmable
  • Variable communication link to the vehicle’s control system (ECU) and diagnostics
  • J1939 or CANopen gateway
  • Platform for application-specific software solutions
  • T6 wizard provides support during commissioning



J1939 CAN APP

The J1939 CAN APP provides a communication gateway in the T6 APD system for exchanging process data, settings and diagnostics messages (DM1 ... DM4) via SAE J1939.



UDS APP

Unified Diagnostic Services (UDS) is a communication protocol used in diagnostics. The ISO 14229-1 standard describes various services. The T6 APD supports a specific number of services.

TSC APP

TSC – Torque Speed Control: generic application for easy control of an auxiliary system’s speed and torque via J1939.

PDG APP

PDG – Process Data Gateway: generic application enabling access to all of the auxiliary system’s settings via J1939.
Enables all conceivable axis functions to be controlled via CAN.

DRIVE APP

Application for operating an additional device without CAN controls. Speed setting using APP parameters.

HEAT APP

  • Sensorless control for PM motors – dynamic speed and torque control
  • Adjustable AC motor speed
  • Environmentally-friendly thermal management, e.g. for electric buses
  • Efficient system solution – increases the range of the electric vehicle
  • Implementation of manufacturer-specific software solutions
  • Plug & Play

eAIR APP

  • Sensorless control for PM motors – dynamic speed and torque control
  • Adjustable AC inverter motor speed
  • Extended fault diagnostics – CAN error behaviour (warning, stop)
  • High level of efficiency, low energy consumption – increases the range of the electric vehicle
  • Low noise and low-vibration
  • Compact design, low weight
  • Implementation of manufacturer-specific software solutions
  • Plug & Play

eSERVO APP

  • Sensorless control for PM motors – dynamic speed and torque control
  • Needs-based flow control
  • Adjustable AC motor speed
  • Extended fault diagnostics – CAN error behaviour (warning, stop)
  • High level of efficiency, low energy consumption – increases the range of the electric vehicle
  • Low-noise
  • Compact design, low weight
  • Implementation of manufacturer-specific software solutions
  • Plug & Play

Safety and Security

Our development phases depend on ASIL and SIL. Operational safety and cyber security use similar development processes. Here, the focus is on identifying and assessing the hazards and risks that can arise from the intended functions. Cyber security is a multi-dimensional concept that covers the entire technical life cycle and the entire organisation of a company. As regulation UN R155 is relevant to the type approval (homologation) of electric vehicles, it primarily concerns vehicle manufacturers. However, suppliers must also be able to demonstrate the cyber security of their products, internal processes and services.



Energy-less holding in position and switching tasks

Bistable brakes are responsible for holding devices in position with just a minimum amount of energy. As a “hand brake”, they prevent vehicles from moving unintentionally.
Bistable clutches enable the engaging and disengaging of movement axes or components. Through a one-off switching pulse (rather than continuous power), electrical energy is only required for the actual switching process. In “stable operating states”, bistable elements operate without consuming any energy which is a decisive advantage particularly for battery-powered systems.

The technology behind bistable products

Operating current-actuated brakes and clutches

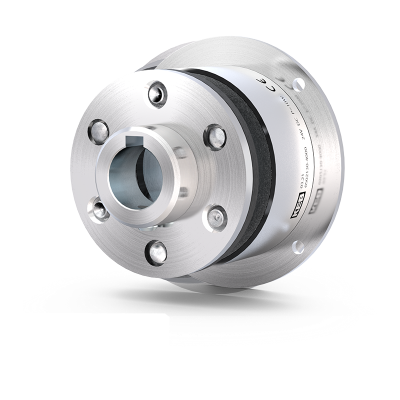

Thanks to frictionally or positive connection the COMBINORM products are particularly suited for precise positioning and reliable holding.

Safe release function without residual torque and no maintenance throughout their entire service life complete the performance.


All you need to know about operating current-actuated brakes

All you need to know about operating current-actuated clutches

Documentation

file-icon

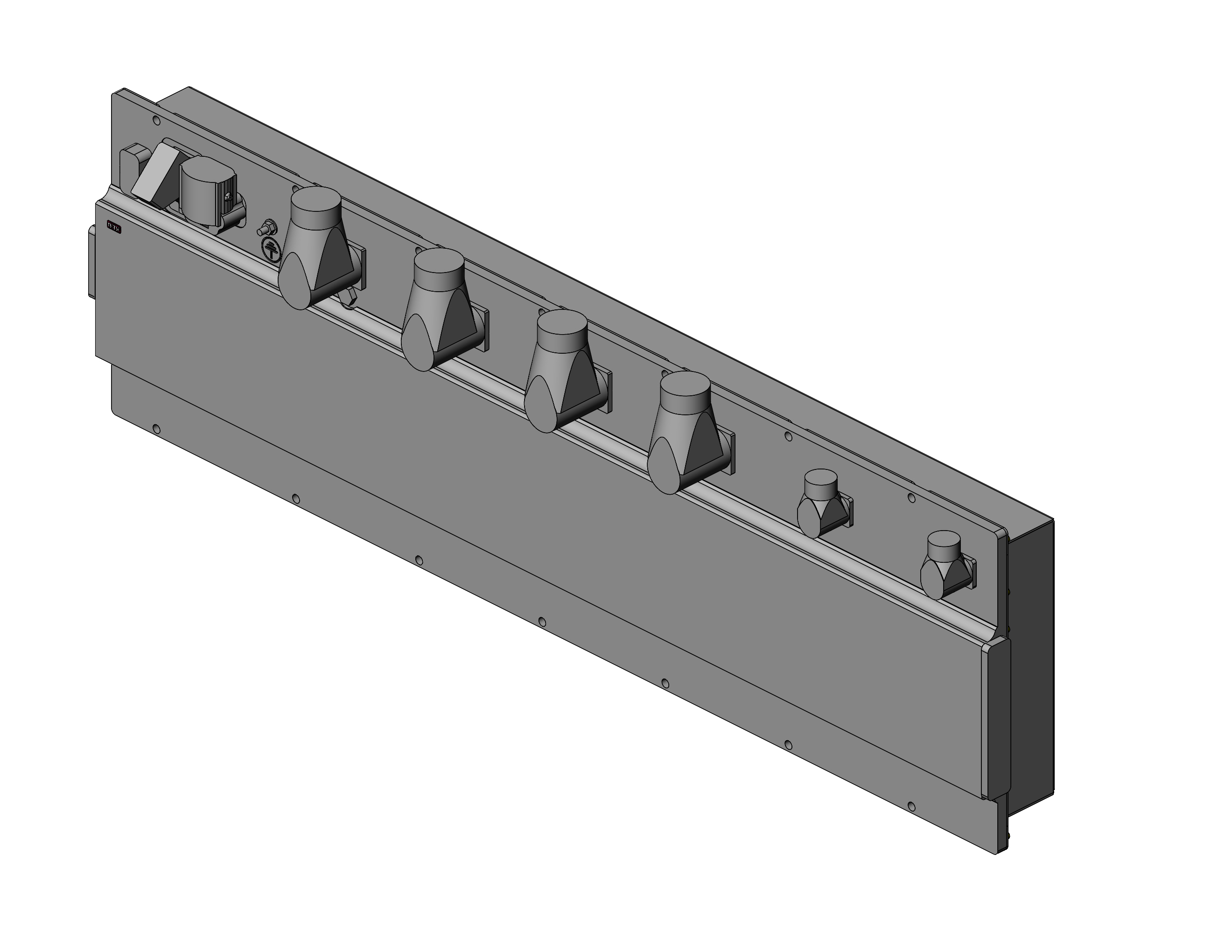

00T6A0C-0007
(JPG, 17.02.2020, 387 KB)
file-icon
00T6A0C-0007
(STEP, 17.02.2020, 2 MB)
file-icon
00T6A0C-00xx
(PDF, 17.02.2020, 520 KB)
file-icon
00T6A0C-00xx
(DXF, 17.02.2020, 10 MB)
file-icon

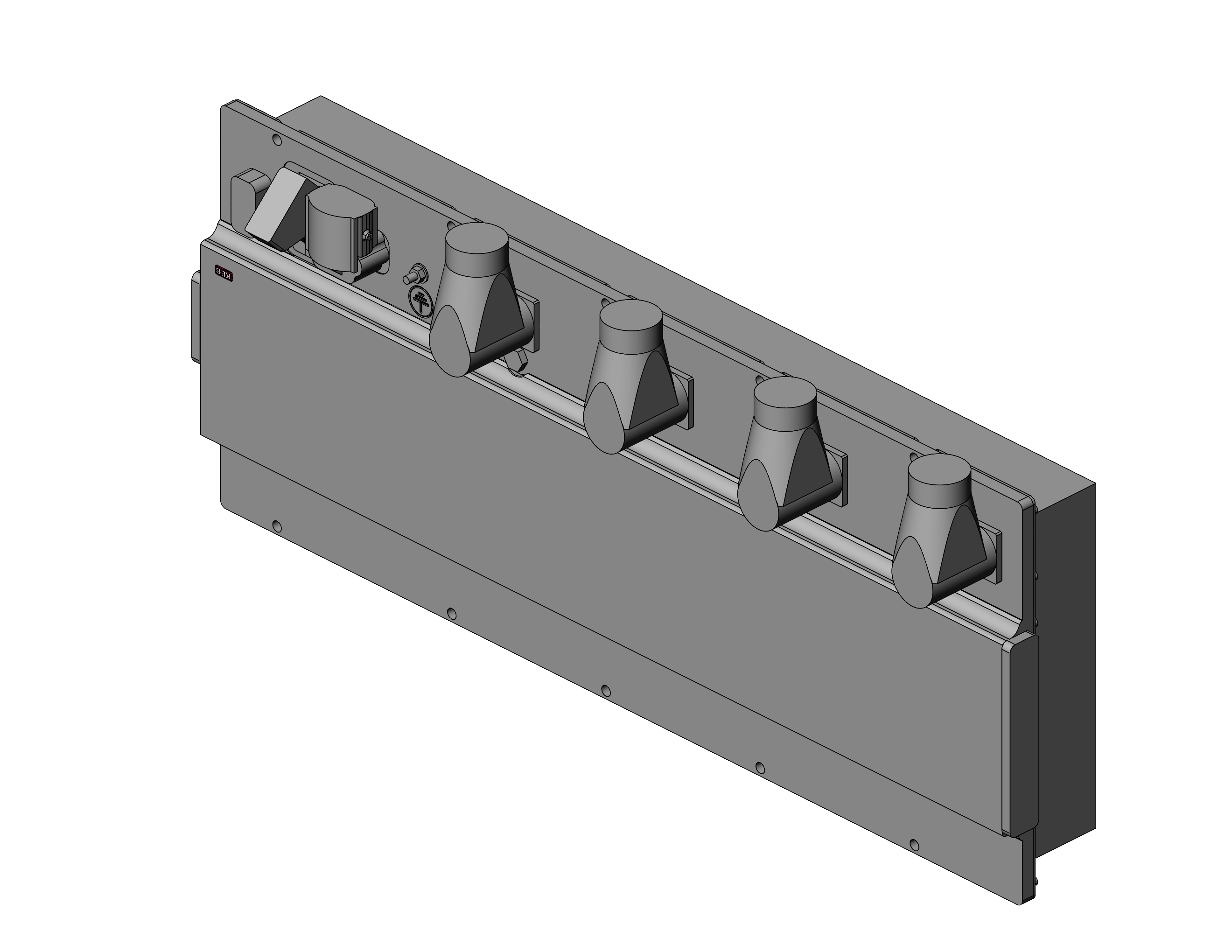

00T6A0D-0001
(JPG, 17.02.2020, 419 KB)
file-icon
00T6A0D-0001
(STEP, 17.02.2020, 2 MB)
file-icon
00T6A0D-0002
(JPG, 17.02.2020, 434 KB)
file-icon
00T6A0D-0002
(STEP, 17.02.2020, 2 MB)
file-icon
00T6A0D-0004
(JPG, 17.02.2020, 434 KB)
file-icon
00T6A0E-0007
(JPG, 17.02.2020, 456 KB)
file-icon
00T6A0E-0007
(STEP, 17.02.2020, 3 MB)
file-icon
00T6A0E-0011
(JPG, 17.02.2020, 456 KB)
file-icon
00T6A0E-0011
(STEP, 17.02.2020, 3 MB)
file-icon
00T6A0E-0016
(JPG, 17.02.2020, 456 KB)
file-icon
00T6A0E-0016
(STEP, 17.02.2020, 2 MB)
file-icon
00T6A0E-00xx
(PDF, 17.02.2020, 664 KB)
file-icon
00T6A0E-00xx
(DXF, 17.02.2020, 13 MB)
file-icon

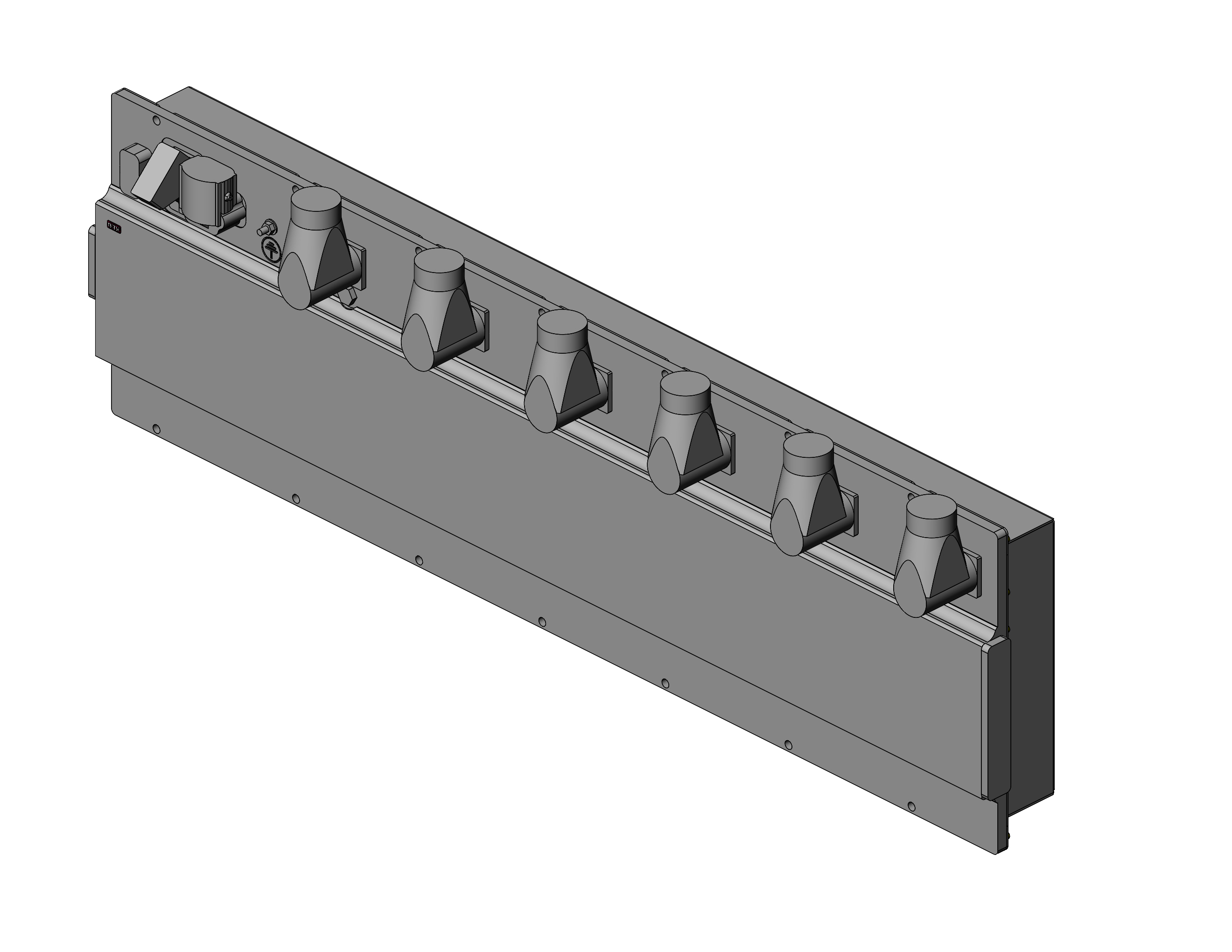

00T6A0F-0001
