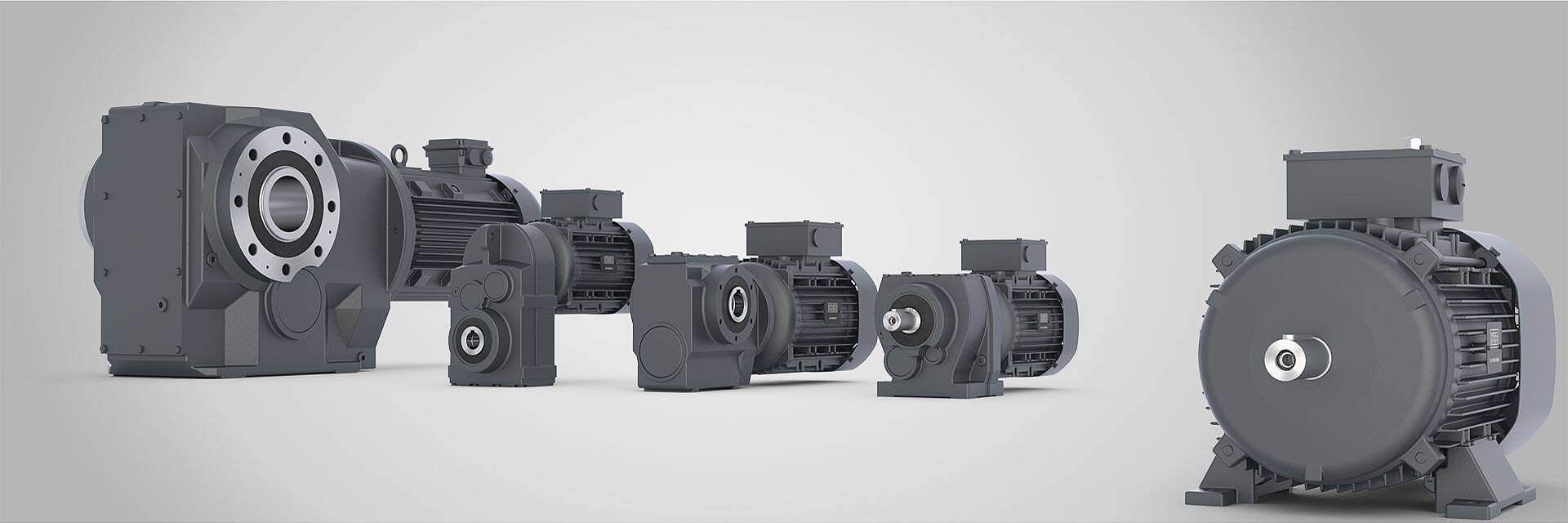

THREE-PHASE ASYNCHRONOUS MOTORS

DM / DA

As universal low-voltage motors, KEB’s three-phase asynchronous motors ensure optimum efficiency at all times. Users can choose to operate them from the mains (IE3) or to control them at the inverter. The advantage here is that as KEB offers entire system solutions, inverters and motors are optimally coordinated with each other. The three-phase asynchronous motors are available in a 4-pole version. Thanks to their robust design, they are also ideally suited for use under harsh environmental conditions. As no two requirements are alike, users have the possibility of adapting the motor to their individual needs thanks to a modular system with various options.

Highlights

  • Various voltages and approvals
  • Prepared for use on KEB’s COMBIVERT F6 and S6 drives
  • Individually configurable
  • Motors MADE IN GERMANY

DO YOU HAVE ANY QUESTIONS? WE WILL BE HAPPY TO HELP YOU!

Simply send us a message via our contact form.

Contact us now

Technical Data

THREE-PHASE ASYNCHRONOUS MOTORS DM / DA

Power when operating at 50 Hz 4-pole IE2 / IE3
Size Power
DM63 … 0.18 kW
DM71 … 0.37 kW
DM80 … 0.75 kW
DM90 … 1.5 kW
DM100 … 3 kW
DM112 … 4 kW
DM132 … 7.5 kW
DA160 … 15 kW
DA180 … 22 kW
DA200 … 30 kW
DA225 … 45 kW

Options

Brake

  • Spring Applied Brakes  “Combistop”
  • Electromagnetic Brakes “Combinorm B”

Encoder









Fans

  •  Integral fan
  • Forced ventilation
  • Without fan (motor closed)
  • Metal fan, high inertia fan

Available voltages and approvals/certificates

Voltages
Approvals/certificates
Δ/Y 230/400 V 50 Hz // Y 460 V 60 HzEurope → CE
Δ/Y 400/690 V 50 Hz // Δ 460 V 60 Hz                North Amercia→ UL (C+US) & EE
Δ/Y 220/380 V 60 HzChina → CCC & CEL
Δ/Y 290/500 V 50 Hz
Y 575 V 60 HzAtex
