PERMANENT MAGNET CLUTCH
COMBIPERM PC

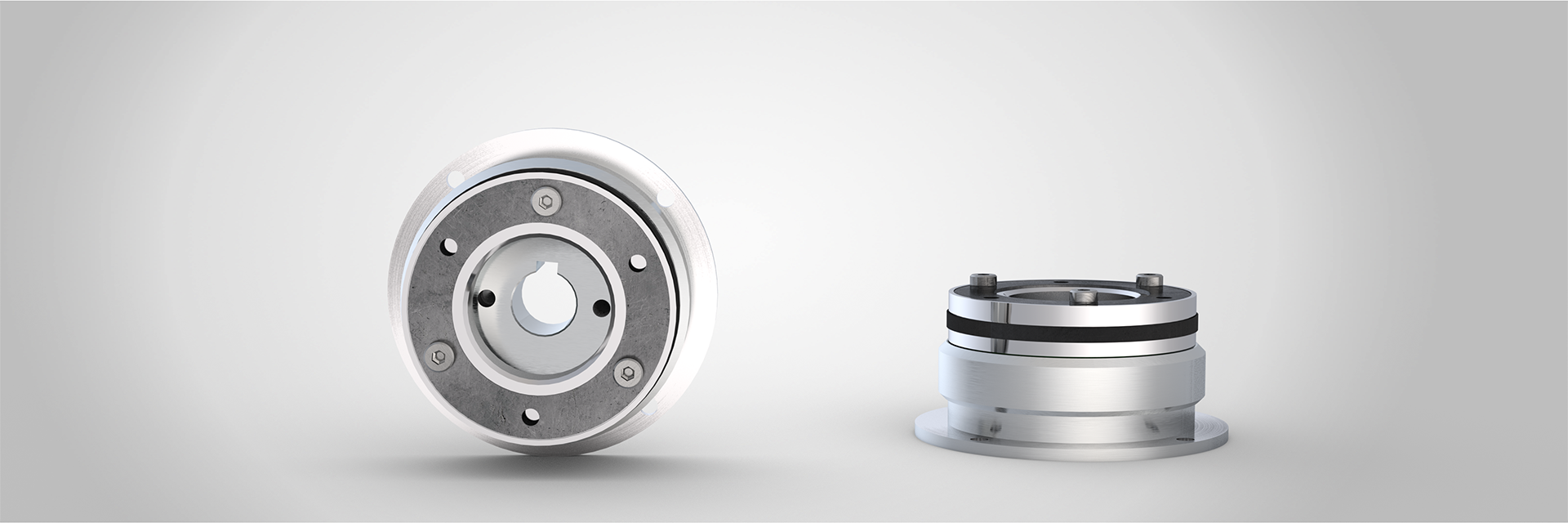

Our COMBIPERM PC is a permanent magnet clutch which uses frictional engagement to transmit torque in the de-energised state. This means that high torques can be reliably transmitted in small assembly spaces. The frictionally engaged connection opens when a voltage is applied, cancelling out the force action of the permanent magnets.
The permanent magnet clutch has a torque range of 6 Nm to 120 Nm.
Highlights
- 7 sizes
- Frictionally engaged torque transmission
- ISO class F in accordance with VDE 0580
- Designed for S1 operation or 100 % duty cycle
- Standard voltage 24V
DO YOU HAVE ANY QUESTIONS? WE WILL BE HAPPY TO HELP YOU!
Simply send us a message via our contact form.
Contact us nowOptions
VdS approved documents top quality and optimum reliability of products and services. In the area of safety technology and door and gate drive systems in particular, the VdS seal of approval underscores reliability and builds trust.
If the COMBIPERM PC standard flange does not fit the installation situation, both the bore hole pattern and the bearing seat recess of the standard flange can be adapted to the customer’s requirements.
If it is intended that the end products will also be used on the Canadian or American market, the relevant certification can be obtained for the COMBIPERM PC.
If the application requires a modified voltage, a customised coil with the corresponding voltage can be realised in the internal production process.
If the assembly process of the brake has to be simplified, our products can be equipped with ready-to-connect cables with plugs, contacts or even wire end ferrules.
A factory certificate 2.1 according to DIN EN 10204 that the delivered products comply with the agreements at the time of order can be provided at the customer's request. This certificate is issued based on non-specific testing. Also, an acceptance test certificate 3.1 according to DIN EN 10204 can be issued at the customer's request. In this case, the confirmation is given with the results of specific tests, such as the torque test.
TECHNICAL DATA
| Size | Rated torque M2 [Nm] | Standard power [W] | Diameter [mm] | max. Rotor bore [mm] | max. Hub bore [mm] |
| 03* | 1.5 | 13 | 54 | 10 | 10 |
| 05* | 3 | 10 | 65 | 15 | 15 |
| 06 | 6 | 18 | 80 | 20 | 18 |
| 07 | 12 | 24 | 100 | 25 | 22 |
| 08 | 24 | 28 | 125 | 30 | 30 |
| 09 | 50 | 35 | 150 | 35 | 35 |
| 10 | 120 | 80 | 190 | 50 | 45 |
Standard voltage: 24 V | Special voltage: on request
Rated torque is reached after pairing conditioning of the friction partners.
