HMI Touch Panel

C6 HMI

C6 HMI operating panels handle visualisation and operation tasks for machines and systems. Graphical user interfaces can be produced with the COMBIVIS studio HMI development tool and its wide variety of functions. Two different ranges of functions are available in the “Basic” and “Advanced” versions. The entire system can be configured and transmitted to other devices via the integrated system manager. In addition, COMBIVIS connect remote maintenance is integrated into each device as standard, enabling remote desktop operation or VPN connection.





Highlights

  • Visualisation system with a wide scope of functions
  • Multiple interfaces and drivers for a wide range of controllers and drives
  • Integrated remote maintenance
  • Intelligent memory management with a large internal memory
  • High-quality and robust panels with an aluminium frame in protection class IP66

DO YOU HAVE ANY QUESTIONS? WE WILL BE HAPPY TO HELP YOU!

Simply send us a message via our contact form.

Contact us now

Technical Data

Panel

Display size 4,3“ 7“W 8,4“ 10,1“W 10,4“ 12,1“ 12,1“W 15“ 15,6“W
Format 16:9 15:9 4:3 16:10 4:3 4:3 16:10 4:3 16:9
Resolution 480 x 272 800 x 480 800 x 600 1280 x 800 800 x 600 800 x 600 1280 x 800 1024 x 768 1366 x 768
Colours 16 M 16 M 16 M 16 M 16 M 16 M 16 M 16 M 16 M
Brightness 400 cd/m² 500 cd/m² 250 cd/m² 400 cd/m² 400 cd/m² 500 cd/m² 400 cd/m² 450 cd/m² 300 cd/m²
iewing angle (L:R/O:U) 130°, 90° 140°, 120° 150°, 130° 160°, 160° 160°, 140° 160°, 140° 176°, 176° 160°, 140° 170°, 160°
ouch technology Resistive 4 wire Resistive 5 wire Resistive 5 wire Resistive 5 wire Resistive 5 wire Resistive 5 wire Resistive 5 wire Resistive 5 wire Resistive 5 wire
Protection class IP66 on front IP66 on front IP66 on front IP66 on front IP66 on front IP66 on front IP66 on front IP66 on front IP66 on front
Front panel Aluminium, Polycarbonate Aluminium, Polycarbonate Aluminium, Polycarbonate Aluminium, Polycarbonate Aluminium, Polycarbonate Aluminium, Polycarbonate Aluminium, Polycarbonate Aluminium, Polycarbonate Aluminium, Polycarbonate

CPU

Processor ARM Cortex A8 - Freescale i.MX535, 1 GHz, 400 MHz Memory Bus
System memory 1 GB DDR3-800
Front panel GPU with integrated LCD controller

Mass Memory

NAND-Flash 256 MB for operating system and runtime environments (internal, not removable)
eMMC (Solid State Disk) 4 GB project memory for free use

Operating data

Power supply 18 … 36 V DC (isolated power supply)
Operating environment 0 … 50 °C, Rel. humidity 80% (without condensation)
Operating environment -20 … 60 °C,Rel. humidity 80% (without condensation)

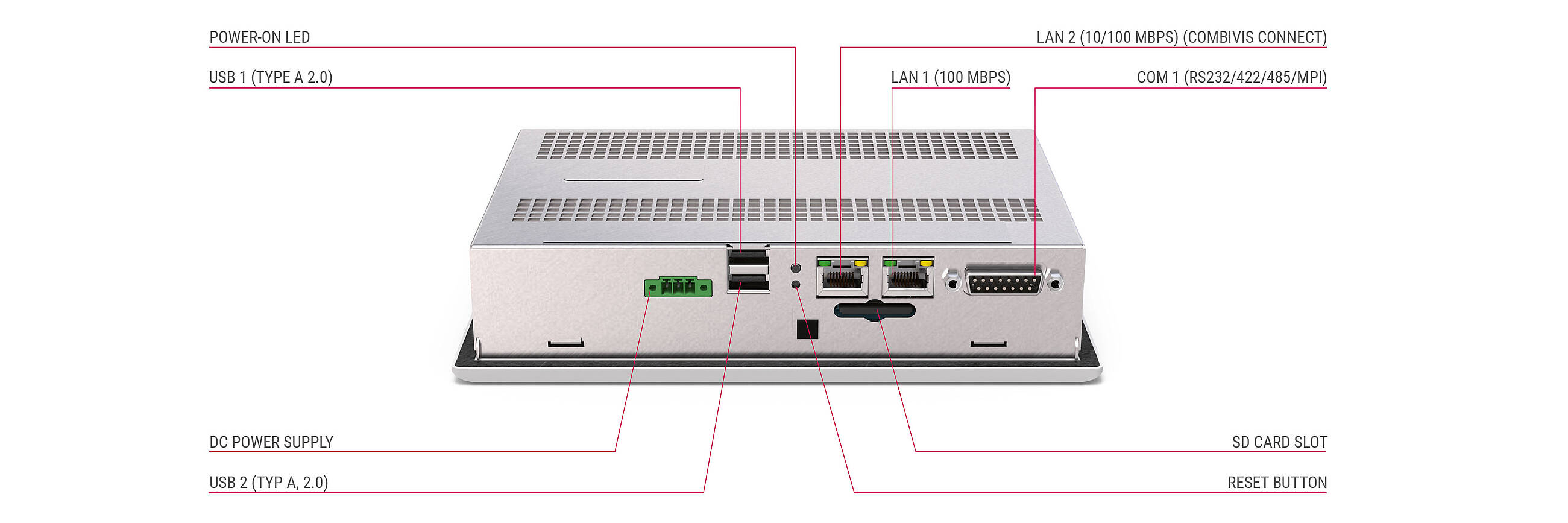

Interfaces

Ethernet / EtherCAT 1 x 100 Mbps (RJ45), 1 x 10/100 Mbps (RJ45)
USB on back 2 x USB 2.0
Serial interface 1 x RS232/422/485 (DB15M) / MPI 187.5 kbit/s
SD/SDHC card slot external access / removable V 2.0 (push-push type)

Operating system

Windows Embedded Compact 7 Pro

APPROVALS

CE (EN 55022, EN 61000-3-2/3, EN 55024, EN 60950-1), cULus LISTED (UL508)

Documentation

file-icon
EPLAN C6
V02
(zip, 06.02.2017, 2 MB)
