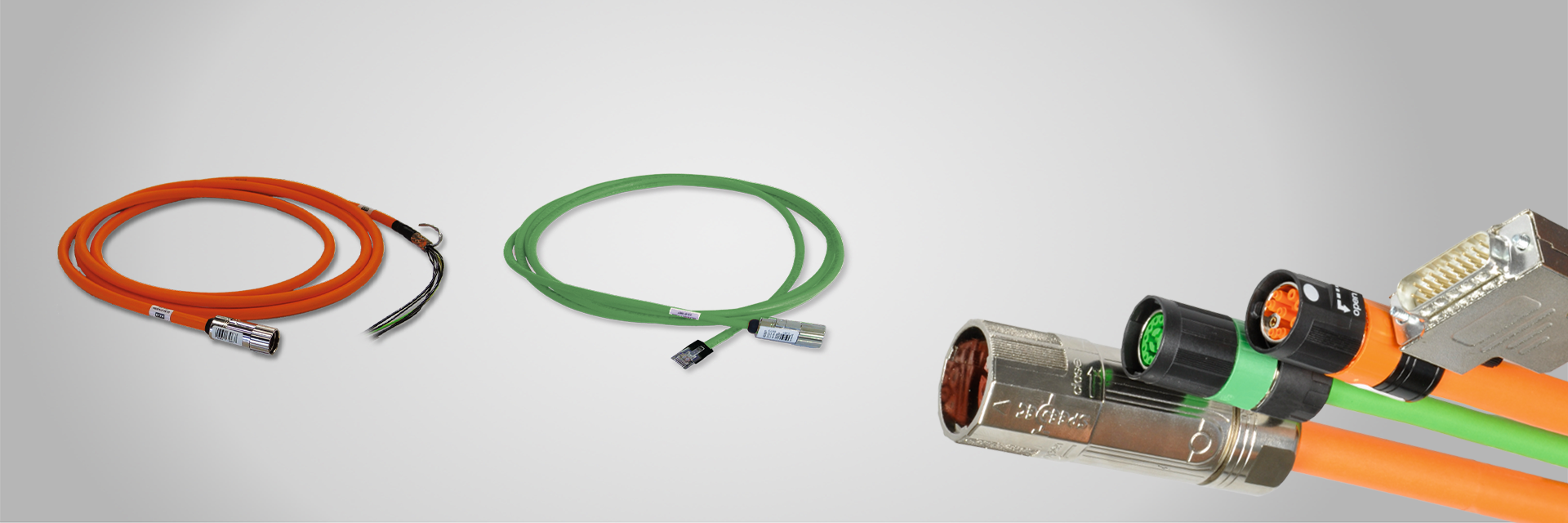

Power cable/encoder cable

The connection between the inverter and the motor, an integral component for system development, standardised for motor and inverter connections according to the respective pin assignment, suitable for laying in machines, available in required lengths (in multiples of 1 m).

Highlights

  • Pre-assembled motor and encoder cable for easy installation
  • High-quality and flexible design for cable drag chains
  • Fast, tool-free assembly thanks to the Speedtec connector
  • Optimally-integrated screen connection
  • Available in lengths of up to 50 m

DO YOU HAVE ANY QUESTIONS? WE WILL BE HAPPY TO HELP YOU!

Simply send us a message via our contact form.

Contact us now

Technical Data

Power cables for servo motors TA1 … TA5 & DL4 MotorsSE CS (M23)

for connecting COMBIVERT S6, F6, F5
Cross section Article Number Lenght
4 x 1.5 mm² + 2 x (2 x 0.75 mm²) 00S451900__ 1 … 50 m
4 x 2.5 mm² + 2 x (2 x 0.75 mm²) 00S461900__ 1 … 50 m
4 x 4 mm² + 2 x (2 x 0.75 mm²) 00S421900__ 1 … 50 m

Power cables for servo motors TA6 (M40)

for connecting COMBIVERT S6, F6, F5
Cross section Article Number Lenght
4 x 4 mm² + 2 x (2 x 0.75mm²) 00S471900__ 1 … 50 m
4 x 6 mm² + 2 x (2 x 0.75mm²) 00S481900__ 1 … 50 m

Encoder cables (M23)

for connecting COMBIVERT S6, F6
Encoder cable TA Motors DM/DA Motors DL4-Motors Cable (M23) KEB F6, S6
Resolver ER   ENC01 00S6L50-10__
BISS-C EN01/EN02     00S6L51-20__
SSI EN03/EN04     00S6L51-20__
Hiperface EN05/EN06   EN04/EN05 00S6L55-10__
Incremental encoder   EI01/EI02/EI03   00S6L54-10__
BISS   EN07   00S6L53-20__
SSI   EN08   00S6L53-20__

Documentation

file-icon
Manual Motor cable
1C
(pdf, 24.01.2017, 333 KB)
