DIN rail IPC

C6 Smart

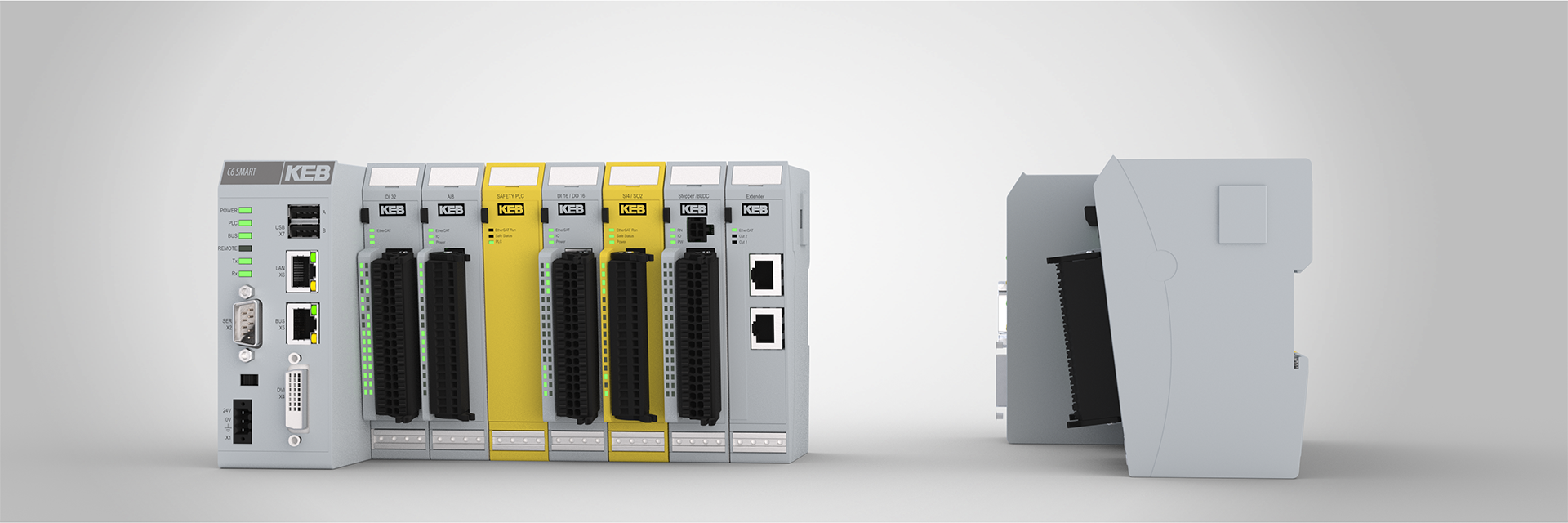

The C6 SMART compact automation system for mounting top-hat rails  is perfectly adapted to the runtime environment and real-time capability. Due to the system’s optimised performance, synchronous motion control tasks are managed with little effort by the user. The C6 SMART is solid and reliable thanks, among other things, to the micro UPS, available as standard, combined with independent memory management for operating systems, runtime environments, non-volatile data and user applications. With an installation space of just 47 mm x 122 mm x 124 mm and direct connection to KEB’s C6 Remote I/O system, the classic IPC becomes part of the clamping system. In addition to integrated real-time control, the C6 SMART not only handles visualisation but also offers a remote maintenance function, integrated as standard, via the COMBIVIS connect platform. This allows access to remote devices with an end-to-end connection.

Highlights

  • Smart system with integrated real-time controller, visualisation and remote maintenance
  • A wide range of interfaces (DVI, USB, Ethernet, EtherCAT, CANopen , RS232/485)
  • Compact dimensions = 47 mm x 122 mm x 124 mm
  • DIN rail IPC with flexibly expandable I/O assemblies and integrated micro UPS
  • Optimised real-time behaviour for synchronous motion control, rapid switching and detection of signals

DO YOU HAVE ANY QUESTIONS? WE WILL BE HAPPY TO HELP YOU!

Simply send us a message via our contact form.

Contact us now

Technical Data

C6 SMART

CPU

Processor ARM iMX6 Dual Core Cortex-A9 @ 1 GHz
System memory RAM 1 GB
Graphic controller Integrated ARM iMX6 Cortex A9

Mass memory

System Memory 4 GB for operating system and runtime environments
Application Memory 8 GB project memory for free use
Retain Memory 128 KB persistent and retain

Operating data

Power supply 18 … 36V DC incl. Micro UPS
Operating environment 0 … 50 °C, Rel. humidity up to 95 % (without condensation)
Storage conditions -20 … 60 °C, Rel. humidity up to 95 % (without condensation)

Operating system

Windows Embedded Compact 7 Pro

Approvals

CE, cULus

Interfaces

Ethernet / EtherCAT 1 x 100 Mbps (RJ45), 1 x 10/100 Mbps (RJ45)
USB on back 2 x USB 2.0
Serial (optional) 1 x RS232/422/485 (DB15M) / MPI 187.5 kbit/s
CAN (optional) CAN Master / slave with termination resistor (DB9M)
SD/SDHC card slot external access / removable V 2.0 (push-push type)
