Permanent magnet synchronous Motors/Servo Motors

Series DYNAMIC LINE

Whenever high performance matters, KEB’s permanent magnet servo motors are the right choice. Cost-effective, durable and particularly powerful, the DL3 and DL4 motors provide extremely high power density. The rated torque values from 11Nm to 520 Nm (DL4) and 0.2 Nm to 70 Nm (DL3) speak for themselves.
The Dynamicline DL4 motors can be provided as an unventilated or forced-ventilated version, according to your needs. The power of the motors can also be flexibly adapted to the requirements of your application. The permanent magnet servo motors can be easily combined with gear units via adapters.

With a smooth surface and compact angular connectors, the DL3 motors are ready for a variety of uses in mechanical engineering.
They are available in an unventilated or forced ventilated design, according to your needs, and the power of the motors can also be flexibly adapted to the requirements of your application. The permanent magnet servo motors can be easily combined with gear units via adapters.

Highlights

  • Permanent magnet synchronous motors for high performance
  • Extremely high power density
  • Various options possible
  • Prepared for use in F6 and S6 drive controllers (cables, download, etc.)

DO YOU HAVE ANY QUESTIONS? WE WILL BE HAPPY TO HELP YOU!

Simply send us a message via our contact form.

Contact us now

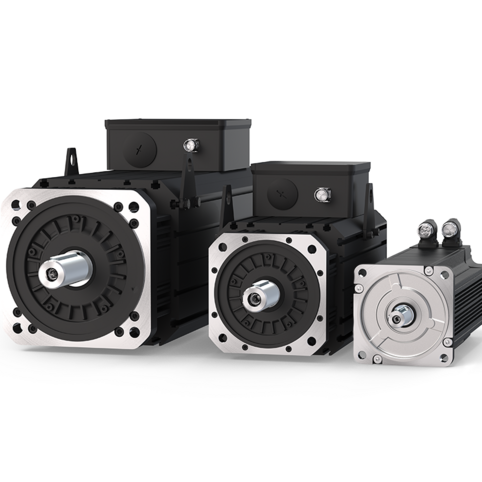

Permanent magnet synchronous motors DL4

DL4 Motors

Learn more about the technical data of the DL4 motors directly here.

DYNAMIC LINE 4

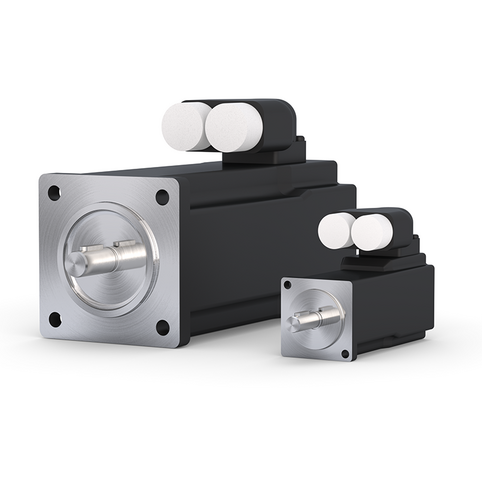

Permanent magnet synchronous motors DL3

DL3 Motors

Learn more about the technical data of the DL3 motors directly here.

DYNAMIC LINE 3

Technical Data

DYNAMIC LINE DL4

Motor speed from 1,000 rpm to 3,000 rpm, system voltage 400 V
Size Torque M0
SE … 48 Nm
SF … 172 Nm
SG … 520 Nm

Options

DYNAMIC LINE DL4

Brake

Encoder

  • Resolver
  • Absolute encoder (Hiperface)









Accessories

Documentation

file-icon
3D-Step-Models DL4 SE CF
(zip, 09.01.2024, 9 MB)
file-icon
3D-Step-Models DL4 SE CS
(zip, 09.01.2024, 39 MB)
file-icon
3D-Step-Models DL4 SF CF
(zip, 29.11.2023, 14 MB)
file-icon
3D-Step-Models DL4 SF CS
(zip, 29.11.2023, 13 MB)
file-icon
3D-Step-Models DL4 SG CF
(zip, 29.11.2023, 10 MB)
file-icon
3D-Step-Models DL4 SG CS
(zip, 29.11.2023, 10 MB)

Technical Data

DYNAMIC LINE DL3

Motor speed from 1,000 rpm to 8,000 rpm, system voltage 400 V (size A - F) 230 V
Size Torque M0
0_SMHF … 0.5 Nm
A_SMHF … 1.2 Nm
B_SMHF … 3.2 Nm
C_SMHF … 5.6 Nm
D_SMHF … 11.4 Nm
E_SMHF … 29 Nm
F_SMHF … 72 Nm

Options

DYNAMIC LINE DL3

Brake

Encoder

  • Resolver
  • Absolute encoder (Hiperface)









Accessories

  • Forced Ventilation
  • Cable
