DRIVE CONTROLLER

COMBIVERT F5

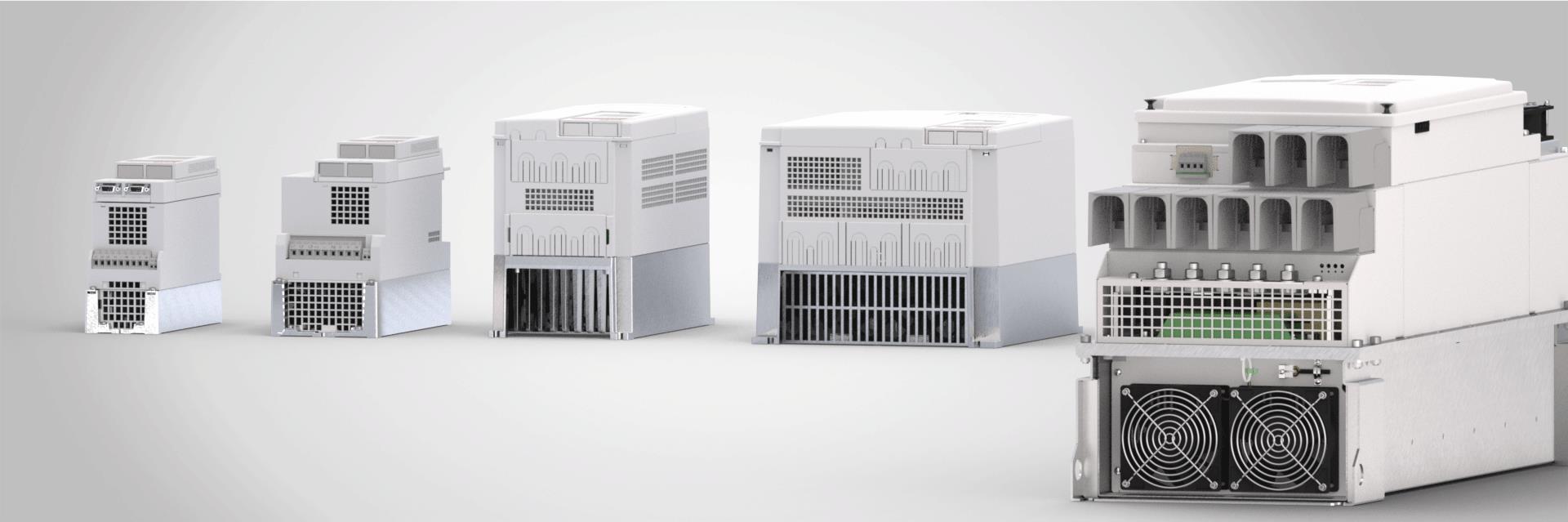

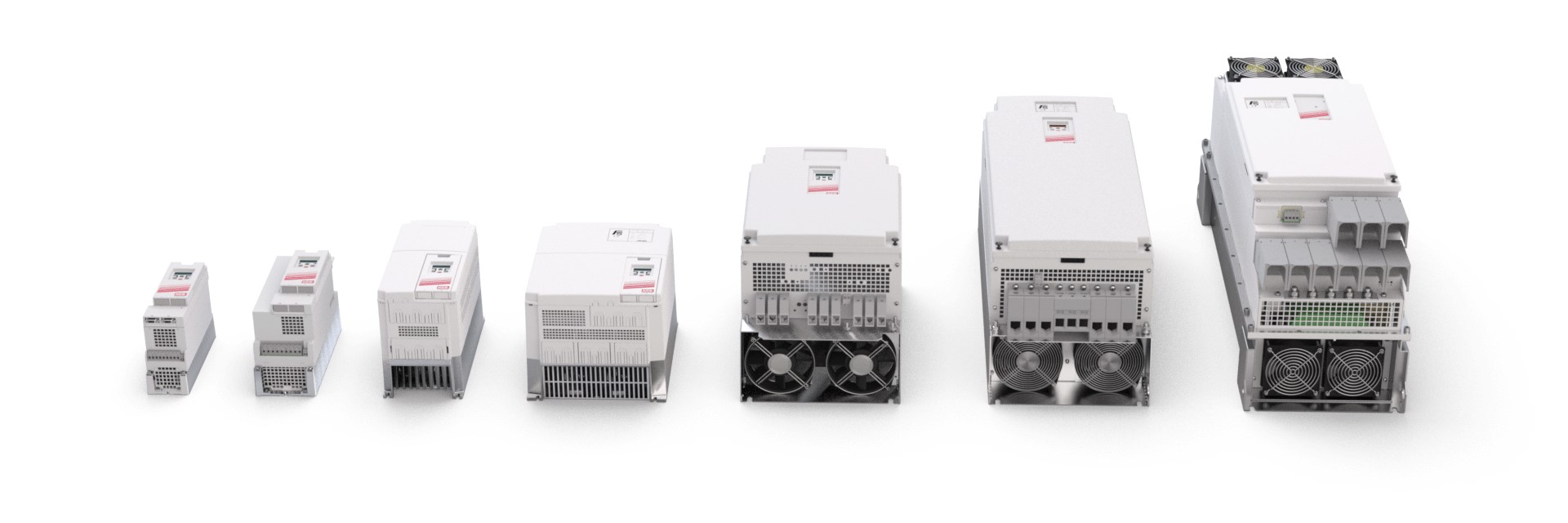

The COMBIVERT F5 is the standard drive controller for controlled and regulated applications in demanding mechanical and plant engineering tasks involving power grades up to 900 kW. No matter whether you have an asynchronous three-phase motor or synchronous servo drive, the COMBIVERT F5 frequency inverter takes control.

The modular software meets the highest demands in terms of speed, torque and breakaway torque, with and without encoder feedback. Uniform operation, identical handling and the same tools are great little aids when carrying out practical work during installation, start-up and servicing tasks.

Highlights

  • Can be used in a wide range of applications
  • Functional consistency across the entire power range
  • A wide range of installation types and cooling modes
  • Various options for motors, encoders and communication

DO YOU HAVE ANY QUESTIONS? WE WILL BE HAPPY TO HELP YOU!

Simply send us a message via our contact form.

Contact us now

Technical data

Device variant 1-phase 230 V 3-phase 400 V
Power range 0.37 kW … 2.2 kW 0.37 kW … 90 kW
Rated currents 2.3 A … 10 A 2.3 A … 360 A
Peak currents (60 s) … 1.8 x In … 1.8 x In

Device variant 3-phase 400 V 3-phase 690 V
Power range 0.37 kW … 800 kW 200 kW … 900 kW
Rated currents 1.3 A … 1,450 A 225 A … 1,015 A
Peak currents (60 s) … 1.8 x In … 1.5 x In

Control Analogue/digital or bus communication
Bus communication CANopen, PROFIBUS, Interbus, DeviceNet, Modbus/TCP, EtherNet TCP/IP, EtherCAT, POWERLINK, PROFINET, EtherNet/IP
Parameterisation interfaces Diagnose RS485/232
Display OptionalOptional
Functional Safety STO

Softwarefeatures
U/f functionality
Controlled operation without encoder asynchronous/synchronous machine
Controlled operation with encoder Asynchronous/synchronous machine
Brake handling
DC braking
Customer parameter group
Eight parameter sets, switchable
PID controller
Power-off function
and much more.
