DRIVE CONTROLLER

COMBIVERT F6

Implement new machine concepts with enhanced performance, communication and integrated safety requirements. COMBIVERT F6 drive controllers are a frequency inverter and servo drive combined in one device and cover the entire power range from 2.2 kW to 450 kW. They control a wide range of motor technologies, with or without encoder operation, and – depending on the application – feature scalable, high-performance safety functions.



Highlights

  • Functional consistency across the entire power range
  • High level of scalability:  A wide range of installation types and cooling modes
  • Various options for motors, encoders and communication
  • Precision and the highest level of repeatability
  • Integrated safety technology
  • Can be used in a wide range of applications



DO YOU HAVE ANY QUESTIONS? WE WILL BE HAPPY TO HELP YOU!

Simply send us a message via our contact form.

Contact us now

Technical data

Power class 3-phase 230 V 3-phase 400 V
Power range 2.2 kW … 22 kW 4 kW … 450 kW
Rated currents 11 A … 85 A 9.5 A … 800 A
Peak currents (60 s) … 1.8 x In … 1.8 x In
Device variant COMPACT APPLICATION PRO
Fieldbus communication EtherCAT or VARAN EtherCAT, PROFINET, EtherNet/IP, POWERLINK, Modbus/TCP EtherCAT, PROFINET
Communication interfaces CAN, diagnosis RS485/232 CAN, diagnosis RS485/232 CAN, diagnosis RS485/232, Ethernet
Functional Safety STO STO, SBC and optional encoder-based speed/position-dependent safety functions STO, SBC and encoderless speed-dependent safety functions
Safety profile --- Safety over EtherCAT (FSoE), PROFIsafe Safety over EtherCAT (FSoE)
Encoder interfaces Multi-encoder Multi-encoder Multi-encoder optional

Cooling



Air-cooled built-in variant

COMBIVERT F6 from 4 kW



Air-cooled push-through variant

COMBIVERT F6 from 4 kW



Liquid-cooled built-in variant

COMBIVERT F6 from 30 kW


Liquid-cooled push-through variant

COMBIVERT F6 from 30 kW

Communication

Type
Real-time Ethernet interface EtherCAT, PROFINET, EtherNet/IP, ModBus TCP, POWERLINK, VARAN
Communication interface CAN, Diagnostic interface RS485/232, Ethernet
Drive profile CiA 402 (IEC 61800-7)
Safety profile Safety over EtherCAT (FSoE), PROFIsafe
Cyclic fieldbus cycle time EtherCAT up to 250 µs (125 µs on request) PROFINET, EtherNet/IP, ModBus/TCP, POWERLINK, VARAN up to 400 µs
Process data size EtherCAT up to 32 objects / 64 Byte, PROFINET, EtherNet/IP, ModBus/TCP, POWERLINK, VARAN up to 8 objects / 32 Byte
Fieldbus Ethernet diagnosis EoE (Ethernet over EtherCAT), PROFINET Ethernet channel, EtherNet/IP Ethernet diagnostic channel, Modbus/TCP Ethernet diagnostic channel
Serial diagnostic interface DIN 66019 for connection to diagnostic tools (e.g. COMBIVIS) or an operator
Operators / Adapters LCD operator, Ethernet operator, USB operator, Bluetooth adapter
Tools COMBIVIS 6, COMBIVIS studio 6, COMBIVIS mobile, COMBIVIS Command Line Interface

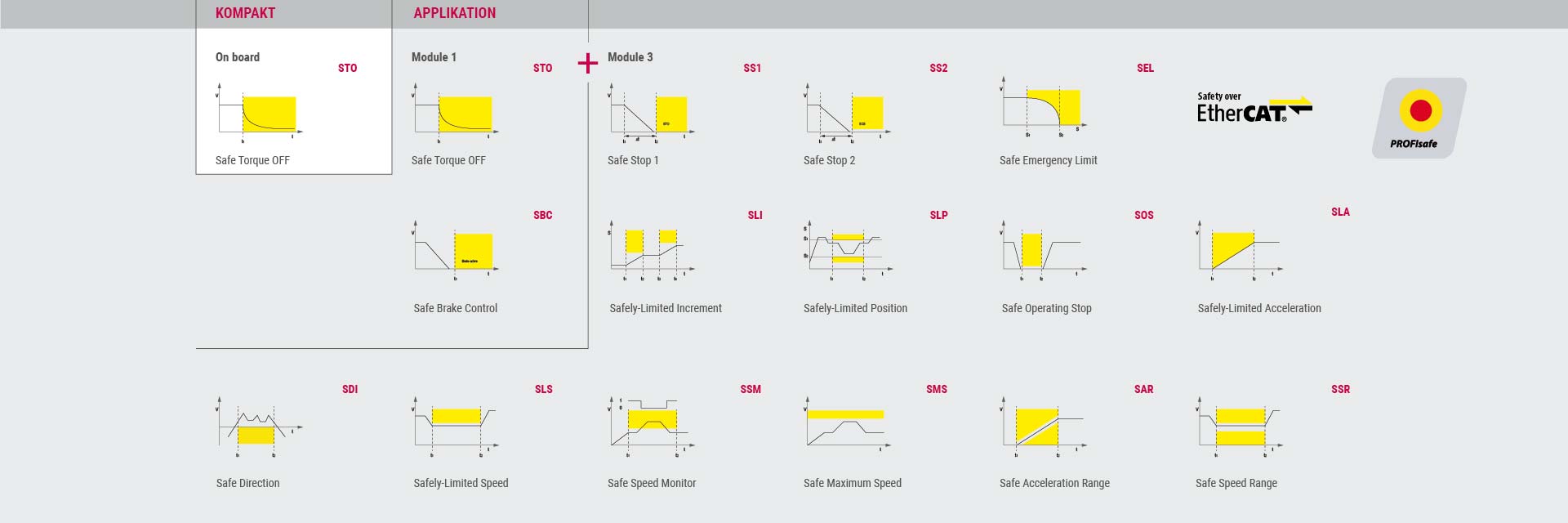

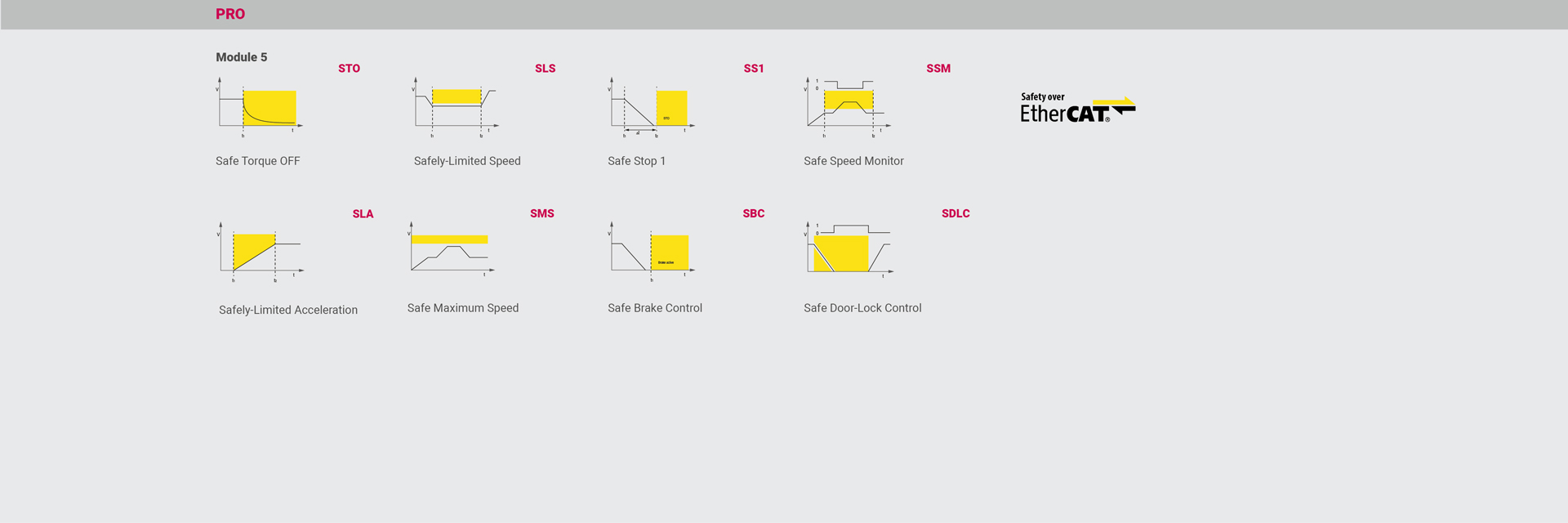

Functional Safety

What is the objective of functional safety? The short answer is to minimise the risks posed by technical equipment to people and the environment. Functionally safe system solutions for machines and plants are based on consistent architecture right through to the mechanical interface. Certified hardware and software isare  used to simplify project planning and the development of applications with safety solutions.
COMBIVERT F6 drives offer scalable safety functions directly in the drive controller – with or without encoders. Safety functions and limit values can be flexibly adjusted via digital I/Os and/or the “Safety over EtherCAT” (FSoE) or PROFIsafe safety profile.


  • Available for the entire COMBIVERT F6 power range
  • Safety functions that can be used with or without encoders
  • Up to eight safety configurations per function
  • For operating various motor technologies such as ASM, PM, IPM, SyncRel
  • Safety functions certified to SIL 3 in accordance with IEC 61508, or to PL e in accordance with ISO 13849
  • “Safety over EtherCAT (FSoE)” or PROFIsafe safety profile
  • Fast release times

    Softwarefeatures

    Basics Flexibility Highlights
        Sub-mounted braking resistor protection
    U/f functionalities Operation of asynchronous, synchronous (SMM/IPM), synchronous reluctance motors, high-speed motors, high-torque motors, linear motors Blockade detection
    Brake handling Evaluation of different types of encoders: TTL, HTL, Resolver, SinCos, EnDat, Hiperface, BiSS Cooling liquid management
    Quick stop/error reaction Modes of operation: Velocity, Profile Position, Cyclic Sync Velocity, Cyclic Sync Position, Cyclic Sync Torque, Homing, Jog Mode Non-linear torque feed forward
    Device memory/ Recipe management   Anti-cogging
    PID controller   AiSCL (Asynchronous single current closed loop)
    Motor/rotor identification   Power-off function (for all motor types)
    Index positioning   Servo pump control
    Position standstill controller   High output frequencies (variant if applicable)
    Rotary table function
    Touch probe function
    Drive software update
    and much more.

    Technology

    No product tabs found!

    In use in these areas of application

    No product cards found!
