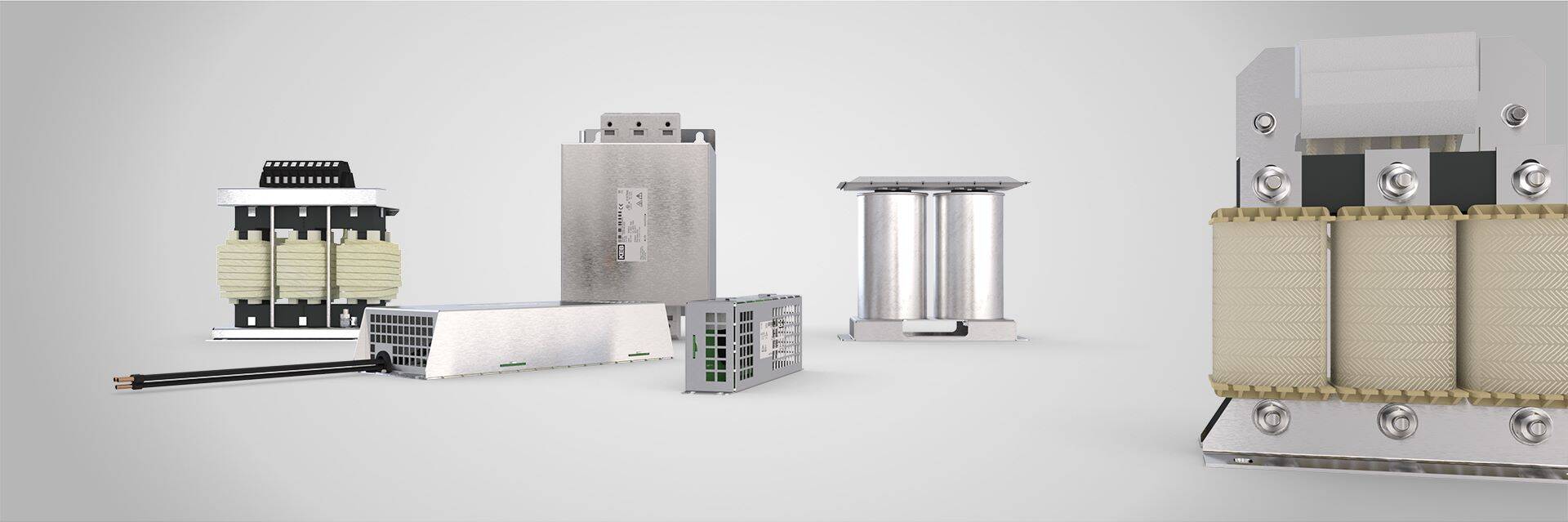

Filters and chokes
COMBILINE
“Automation with drive” stands for system solutions from automation to mechanical movement. EMC technology is integrated into KEB’s portfolio and is one of the components that optimise the mains-side or motor-side connection. In practice, EMC technology is integrated into drive controllers, or alternatively implemented as a modular solution for single or combined axes. In addition to ensuring compliance with valid standards, the goal of EMC technology is to ensure maximum operational reliability of machines and systems.
DO YOU HAVE ANY QUESTIONS? WE WILL BE HAPPY TO HELP YOU!
Simply send us a message via our contact form.

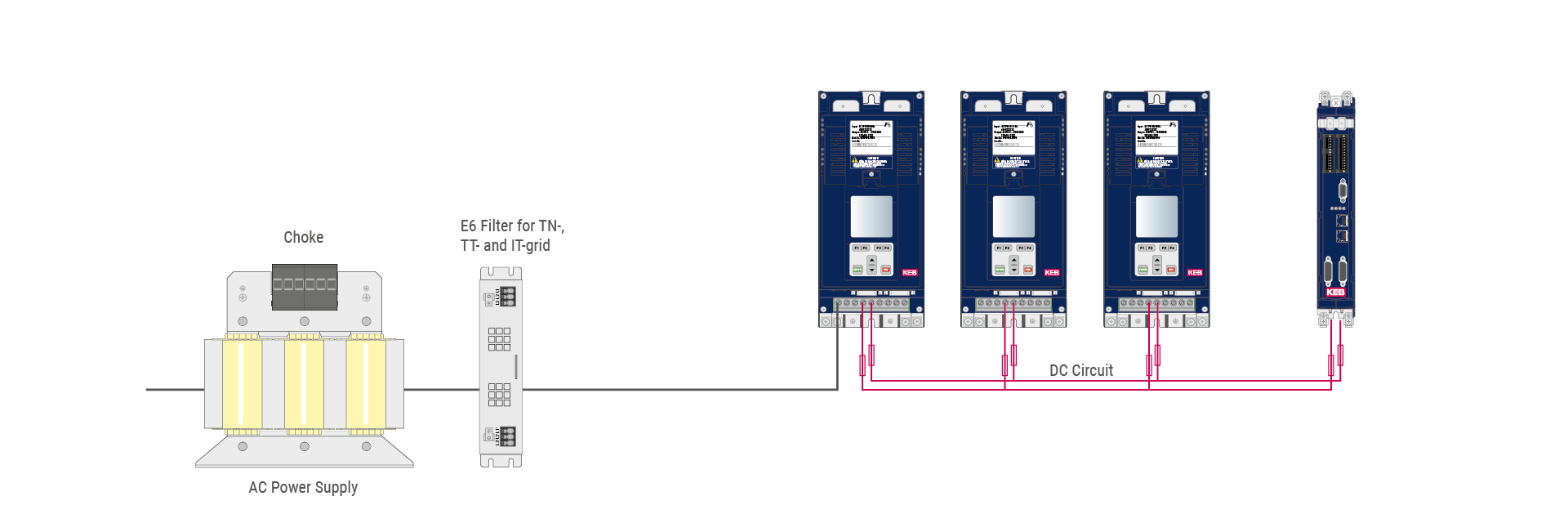

Contact us nowMains-side-connection
Main chokes, harmonic filters and high-frequency filters
Mains chokes
COMBILINE Z1
- Reduce harmonics and in-rush current to the mains
- Reduce the current load on supply elements such as transformers and supply cables
- Negative influences on drive electronics from the supply network are eased
Harmonic filters
COMBILINE Z1
- Restrict the harmonic component to max. 8 % without a voltage drop accruing in the mains chokes
High-frequency filters (HF-filters)
COMBILINE E6
- Mains-bound, high-frequency interference suppression of single and multiple axis systems
- AC and DC standard filters with reduced leakage current
- Also available in variants for IT networks

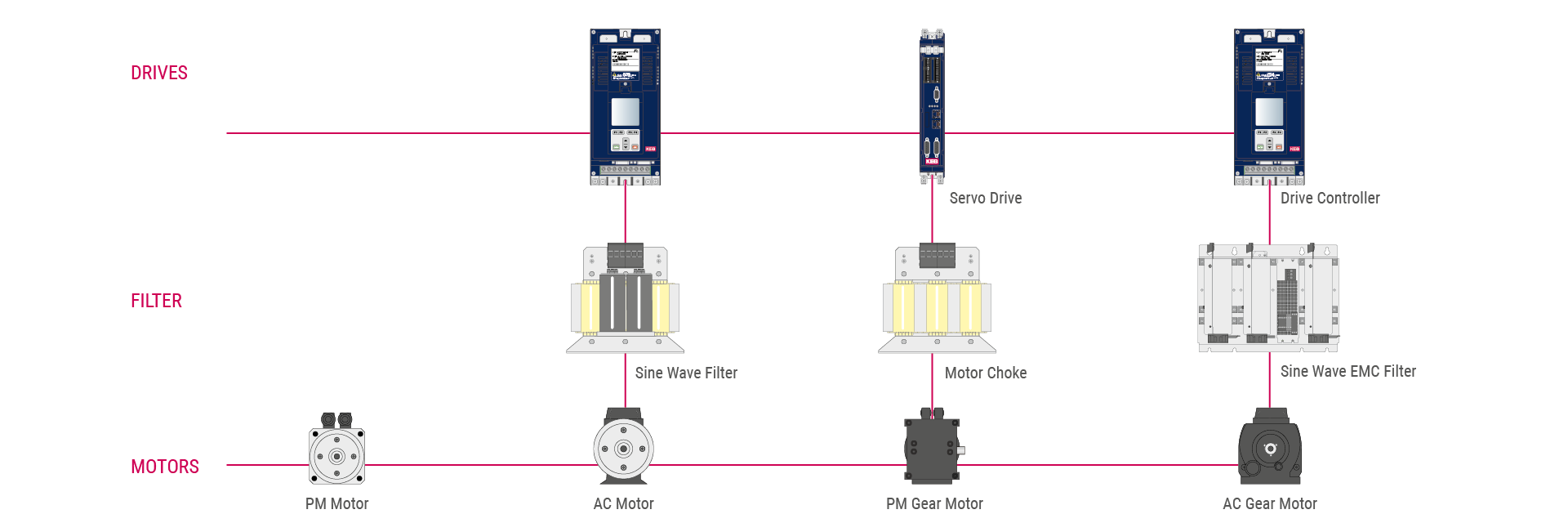

Motor-side connection
Output chokes, sine-wave filters and common mode filters
Output chokes
COMBILINE Z1 and Z2
- Reduce the voltage rise rate (dV/dt)
- Protect the winding insulation of three-phase motors
- Reduce the peak value of the current, and reduce stress on IGBTs in the drive controller
- Used in applications with an output frequency up to 1,600 Hz
Sine-wave filters
COMBILINE Z1 and Z2
- Generate sinusoidal voltages and currents to the motor
- Optimise additional losses in the motor’s stator and rotor (efficiency optimisation)
- Used in applications with an output frequency up to 1,600 Hz
Common mode filters
COMBILINE Z1i05
- Reduce symmetrical and asymmetrical interference
- Compliance with statutory limits for installations with long motor cables possible, even for installations without shielded motor cables

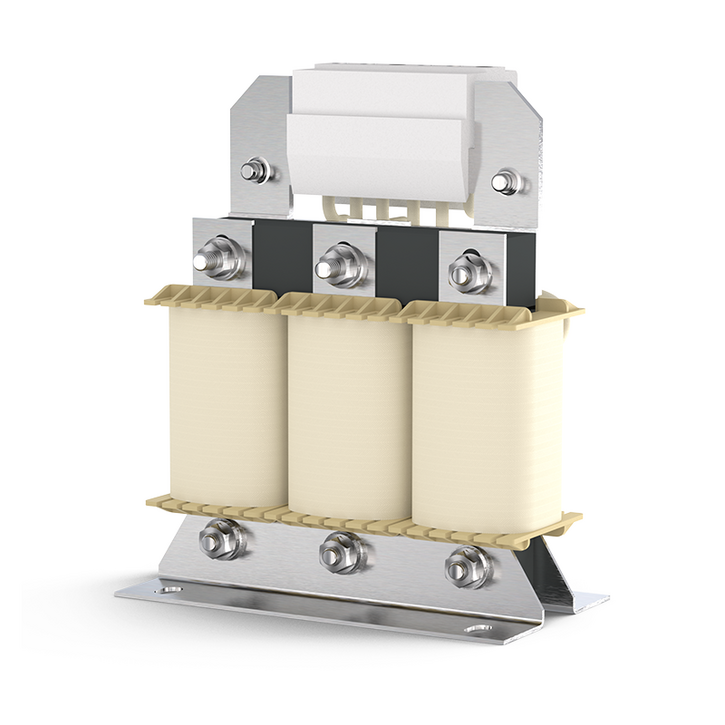

Mains chokes
COMBILINE Z1 – mains-side
The mains chokes for single-phase or three-phase consumers are universally designed for a frequency range of 45 Hz to 65 Hz, and with a rated current of 1.4 A – 840 A with uk = 4 %.
Mains chokes for rear wall installation in a compact control cabinet design offer an additional option with EMC filter wires that require no additional cabling work.
Advantages
- Relieve supply cables and transformers
- Optimise harmonics of the mains power supply
- Protect the input rectifier and electrolytic capacitors in the drive controllers and servo drives
- Increase the service life of electrolytic capacitors
Download

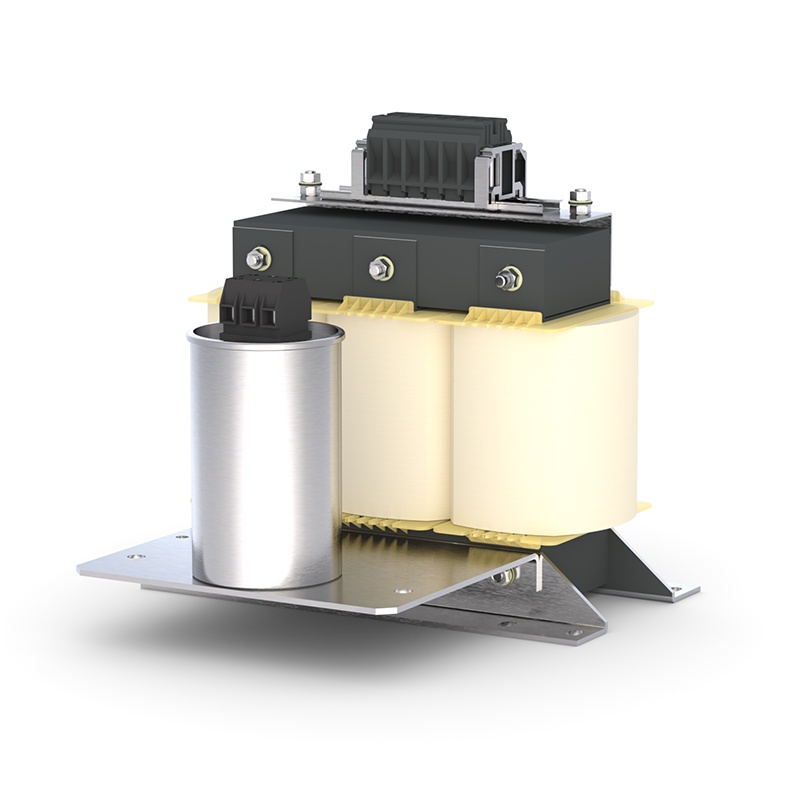

Harmonic filters
COMBILINE Z1 – mains-side
KEB’s passive solution for reducing network harmonics. The harmonic filters enable compliance with many international standards. Coordinated 400 V/50 Hz and 480 V/60 Hz solutions reduce the THDi to < 8 % and the PWHD to < 15 %. These harmonic filters, with their innovative internal structure, also offer a high overload capacity up to 150 % and efficiency of > 99 %.
Advantages
- Compact design
- Ready for connection – no additional wiring necessary
- No tendency to oscillate with dynamic load cycles
- No voltage loss compared to mains chokes
- Multiple parallel consumers per unit possible
- Optimised design for generators in isolated operation
- Protection for drives in “soft” and “overshooting” networks
- Increased service life for intermediate circuit capacitors
- No additional compensation equipment required when systems are updated or expanded
- Reduction of the current load on the machine’s supply cables and the transformer

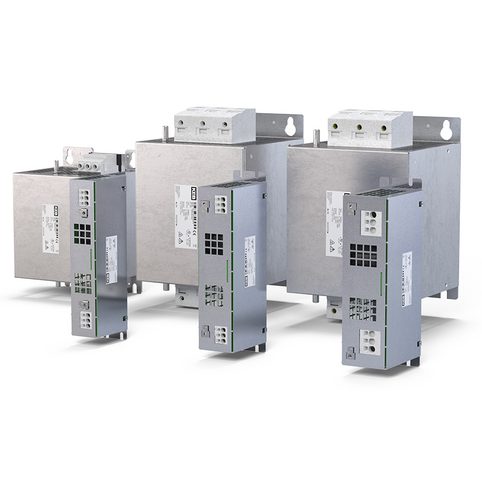

EMC-filters
COMBILINE E6 – mains-side
EMC filters from the E6 series with a rated voltage range of 180V to 528VAC or 150V to 840VDC and a rated current of 12A to 330A are characterised by a high interference suppression level (C1 with motor cable length up to 500m) and a very low leakage current. Therefore, E6 filters are particularly well-suited for use on B and B+ type RCDs. This technology is designed as a central switch cabinet filter, a collective filter, and for interference suppression for individual devices. The series is also available as a sub-mounted version for the COMBIVERT F6 drive controller up to 90 kW (up to Housing 6).
Above, and up to 840A, the standard filter type E4 (Suppression level C2) is available. This filter line is also available as a sub-mounted version for KEB COMBIVERT F6 drive controller up to 315kW (Housing 7 and 8).
Three-wire HF filters
- two-stage central filter for connection three-phase consumers
Four-wire HF filters
- three-stage central filter for connection single and three-phase consumers (three-phase plus neutral wire)
DC HF filters
- For For connecting consumers to a DC supply or a DC network
DC high-frequency (HF) filters are used for suppressing interference from individual devices
This enables larger DC supply networks, as well as DC supply networks spanning a range of machines, to be set up
Interference suppression of individual systems enables motors with longer cable lengths to be operated without disturbing the DC supply network
ADVANTAGES
- Low leakage currents when operated with drive controllers and servo drives
- Compact design in book format with a small mounting surface
- High saturation resistance, designed for shielded motor cable lengths up to 100 m or 300 m
- Operation on AC/DC sensitive RCDs with low triggering level 30/300 mA to protect people and provide fire protection
- High overload capacity

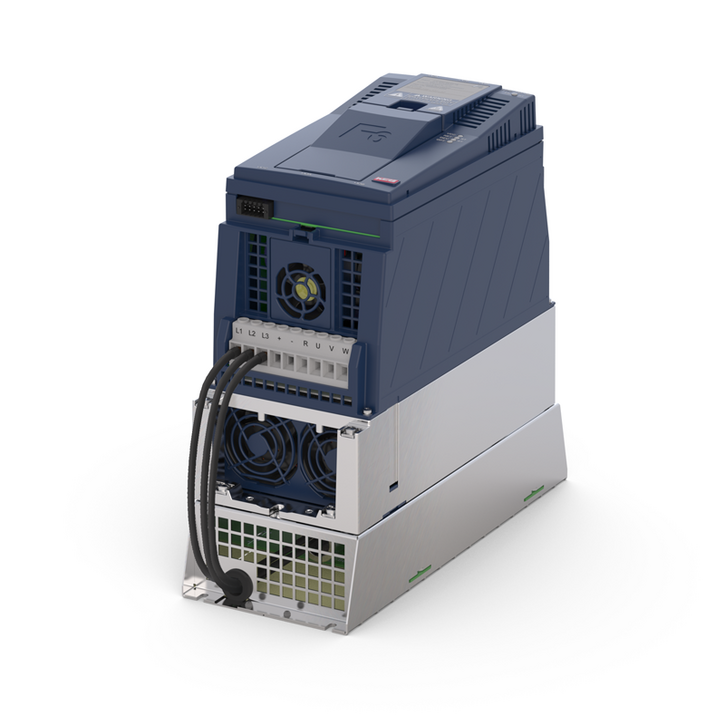

COMBILINE E6 EMC sub-mounted filters for COMBIVERT F6 drive controller
ADVANTAGES
- Wide rated voltage range from 0 V AC to 550 V AC
- Rated currents from 21 A to 650 A
- Space-saving, sub-mounted filter, no additional space required in the control cabinet
- Ready for connection
- High overload capacity
- Compatible with IT supply networks

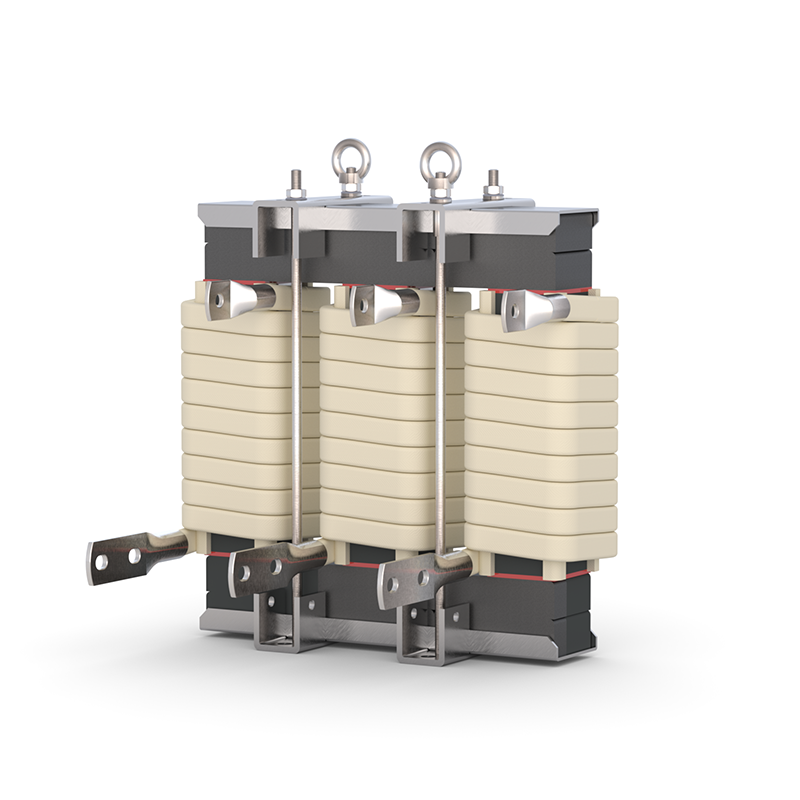

Output chokes
COMBILINE Z1 and Z2 – motor-side
Output chokes are a cost-effective way to reduce the voltage rise rate (dV/dt) and prevent the winding insulation of three-phase motors from ageing prematurely. The COMBILINE Z1 range is suitable for applications with output frequencies of up to 100 Hz, and the COMBILINE Z2 for output frequencies of up to 1,600 Hz, rated voltages of 400 V AC or 480 V with rated currents of 1.3 A - 800 A.
ADVANTAGES
- Increase the service life of motor windings
- Reduce current ripples and therefore rotor losses in the motor
- Suitable for applications with long motor supply cables (> 30 m)
- Increase total inductance at output
- Optimise the voltage rise rate (dV/dt) of the IGBT
- Reduce the peak value of the current, and relieve the IGBTs in propulsion inverters
Download

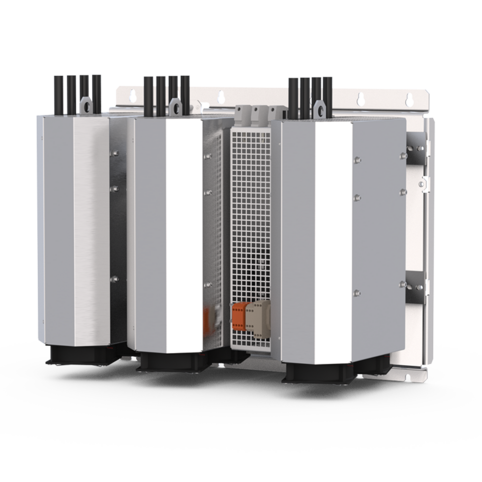

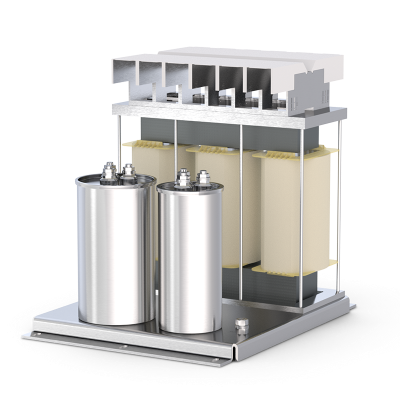

Sine-wave filters
COMBILINE Z1 and Z2 – motor-side
Sine-wave filters are low-pass filters, which filter out the switching frequency from the PWM (pulse width modulation) output signal of the drive controller. Sinusoidal voltage with a small ripple occurs at the filter output which results in a sinusoidal motor current. This is why using sine-wave filters does not involve any additional losses in the motor’s stator and rotor, which otherwise occur when operating the drive controller.
COMBILINE Z1 and Z2 sine-wave filters are suitable for applications with output frequencies of 50 Hz/100 Hz/200 Hz, as well as up to 1,600 Hz with perfectly coordinated capacitor modules and cable sets. With a rated voltage of 400 V AC and rated currents of 1.3 A to 710 A.
Advantages
- Reduce additional losses, such as bearing currents, in the motor during direct drive controller operation
- Sinusoidal output voltages between the phases reduce the current ripple, which leads to less rotor heating;
in addition, the service life of the bearings increases - Reduce motor noise
- Improve motor efficiency
- Optimise high-frequency interference emissions
- Lower EMC load on the equipment
- Reduce discharge currents driven by pulse frequency in the case of long cable lengths.
- The sinusoidal output voltages between the phases and the significantly lower dV/dt with resulting reduction in the voltages from phase to ground reduce the capacitive currents.
- Increase the service life of motor insulation
- Transformation of the PWM signal of the drive controller to sinusoidal sizes, meaning that there is no excess voltage and there is a smaller rise in voltage at the motor winding.
Download

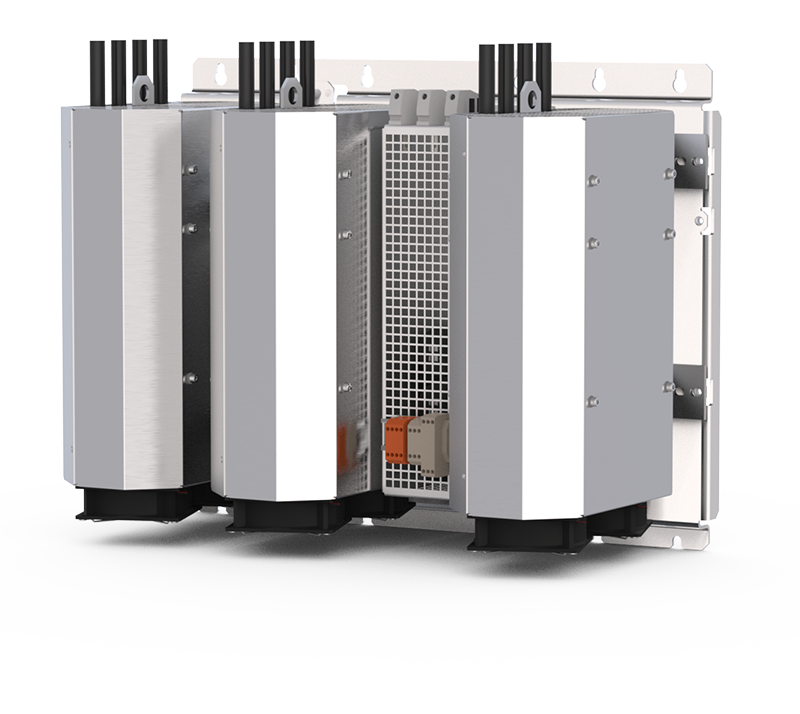

Common mode filters
COMBILINE Z1i05 – MOTOR-SIDE
The common mode filter is a further development of KEB’s sine-wave filters, and is used to reduce symmetrical and asymmetrical interference.
Support and compliance with statutory limits for installations with long motor cables, even for installations without shielded motor cables. The Z1i05 specifications are a high overload capacity of 150 %, efficiency > 99 % with rated voltages of 400 V AC/480 V AC +/- 10 % and rated currents of 9.5 A – 460 A.
The filter is suitable both as a motor filter and as a network filter for active infeed converters (AIC).
ADVANTAGES
- Longer service life of the motor winding thanks to protection against premature ageing
- The filters are pre-wired and therefore immediately ready for use
- Create a sinusoidal voltage and current at the drive controller output
- Cost savings through the use of unshielded motor cables
- A defined DC network can be created in conjunction with KEB’s AIC
Download
