RECTIFIER

COMBITRON 91

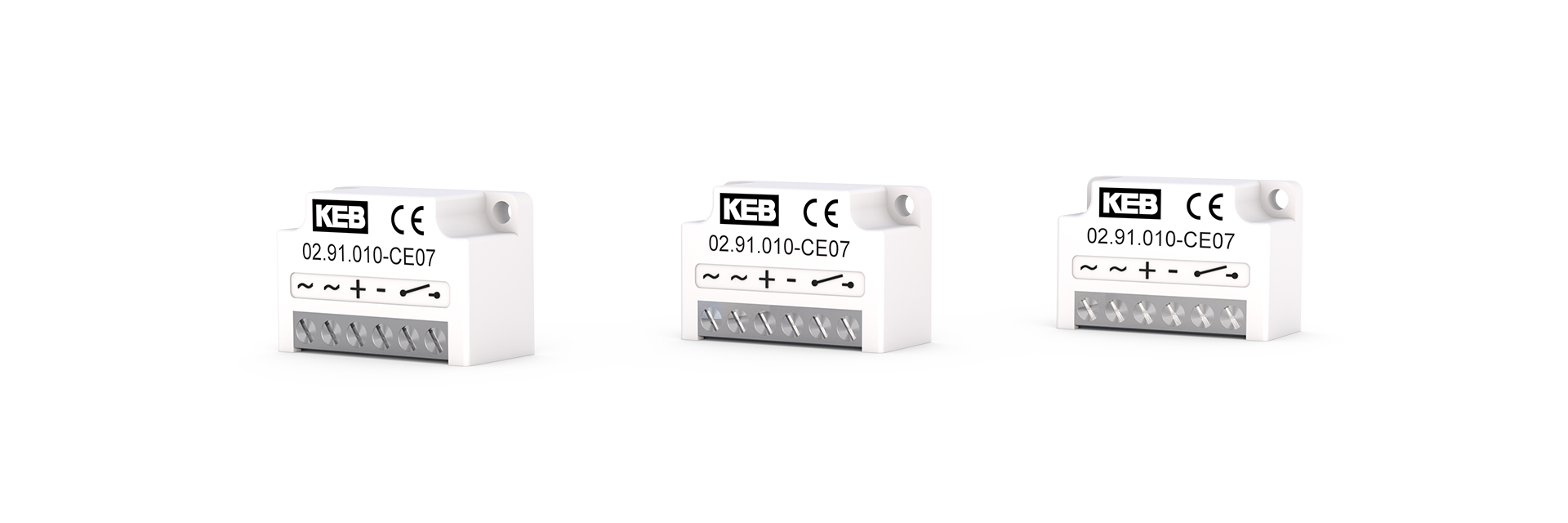

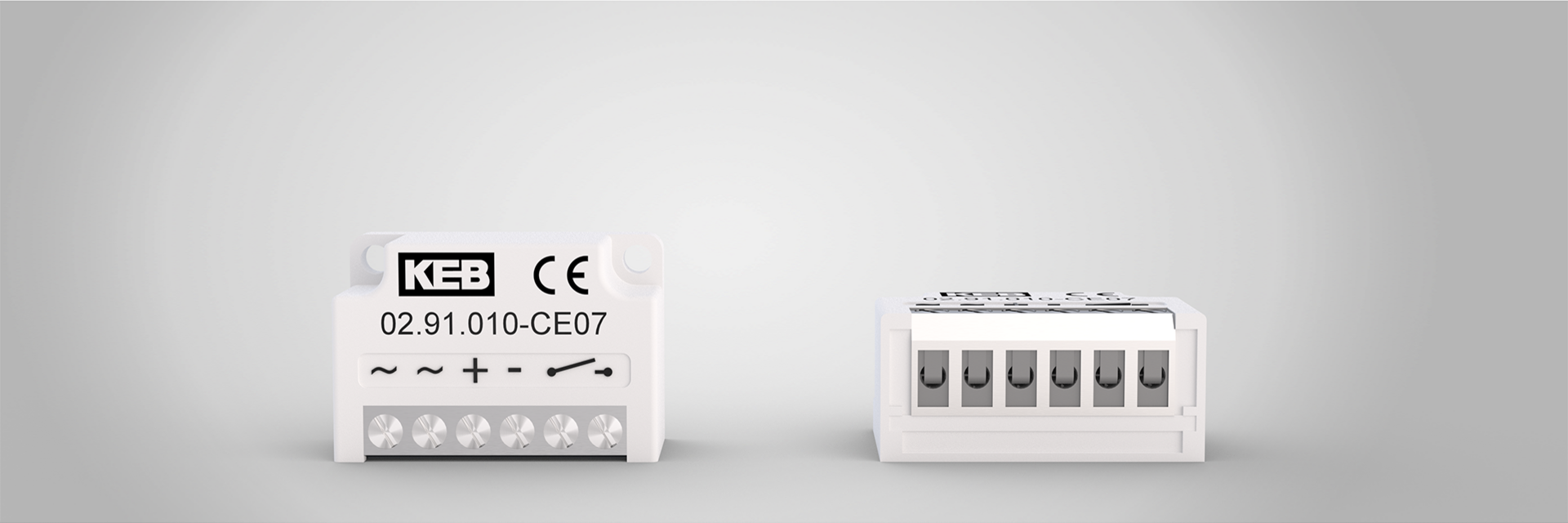

COMBITRON 91 rectifiers are half-wave or bridge rectifiers for supplying electromagnets with a supply voltage of up to max. 720 V AC for DC or AC side switching in accordance with the 73/231/EEC Low Voltage Directive. When switching electromagnetic clutches and brakes and other inductive DC consumers, harmful electromagnetic interference can occur. Our half-wave rectifier with interference suppression limits the interference to class A in accordance with EN 55011.

Highlights

  • Half-wave or bridge rectifier
  • Up to 720 V
  • UL-certified
  • Compact design in plastic housing
  • DC-side and AC-side switching

DO YOU HAVE ANY QUESTIONS? WE WILL BE HAPPY TO HELP YOU!

Simply send us a message via our contact form.

Contact us now

TECHNICAL DATA

Input voltage (Uin)max. Input voltage (Uin maxmax. Cut-off voltageSwitching modeNominal voltage magnet*Type of rectifier
48 V AC275 V AC450 VHalf wave20 V DC0291010-CE07
   Full wave42 V DC0291020-CE07
110 V AC275 V AC450 VFull wave105 V DC0291020-CE07
220 / 230 V AC275 V AC450 VHalf wave105 V DC0291010-CE07


  Full wave205 V DC0291020-CE07
   Half wave with EMC protection105 V DC0291010-CEMV
380 / 400 V AC500 V AC900 VHalf wave180 V DC0491010-CE07
   Full wave380 V DC0491020-CE07
380 / 400 V AC600 V AC1000 VHalf waveon request0591010-CE09
600 / 690 V AC720 V AC1600 VHalf waveon request0691010-CE09

* Half-wave rectifier: 0,45*Uin     Full-wave rectifier: 0,9*Uin
