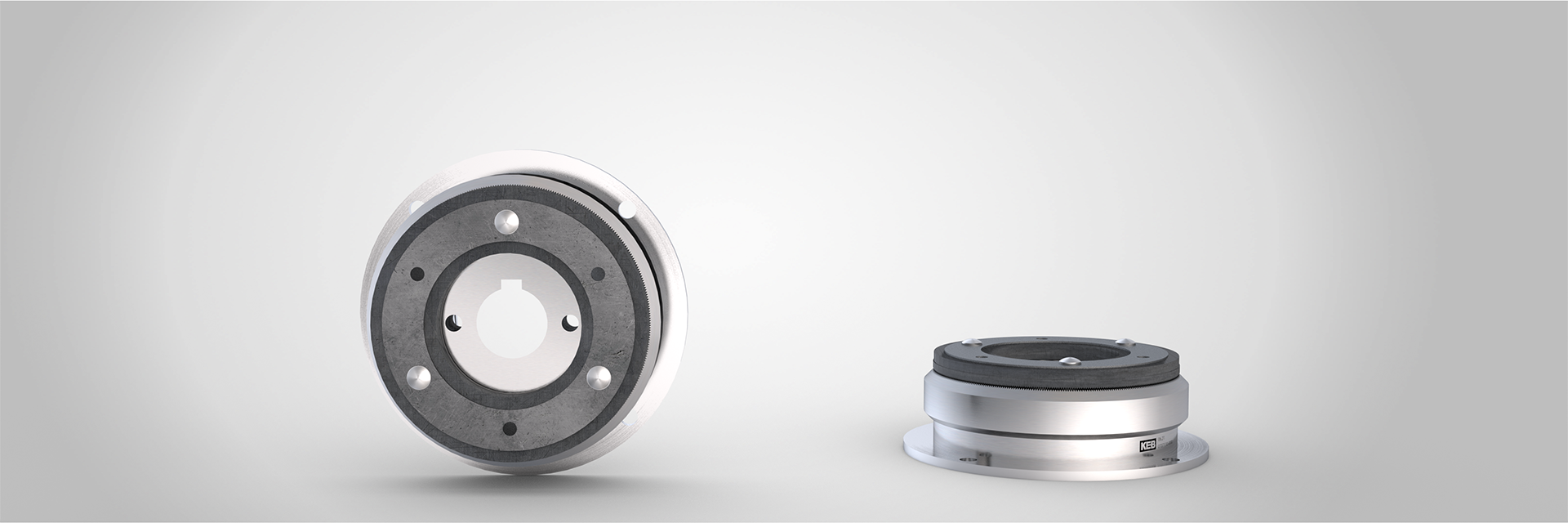

ELECTROMAGNETIC TOOTH CLUTCH
COMBINORM T

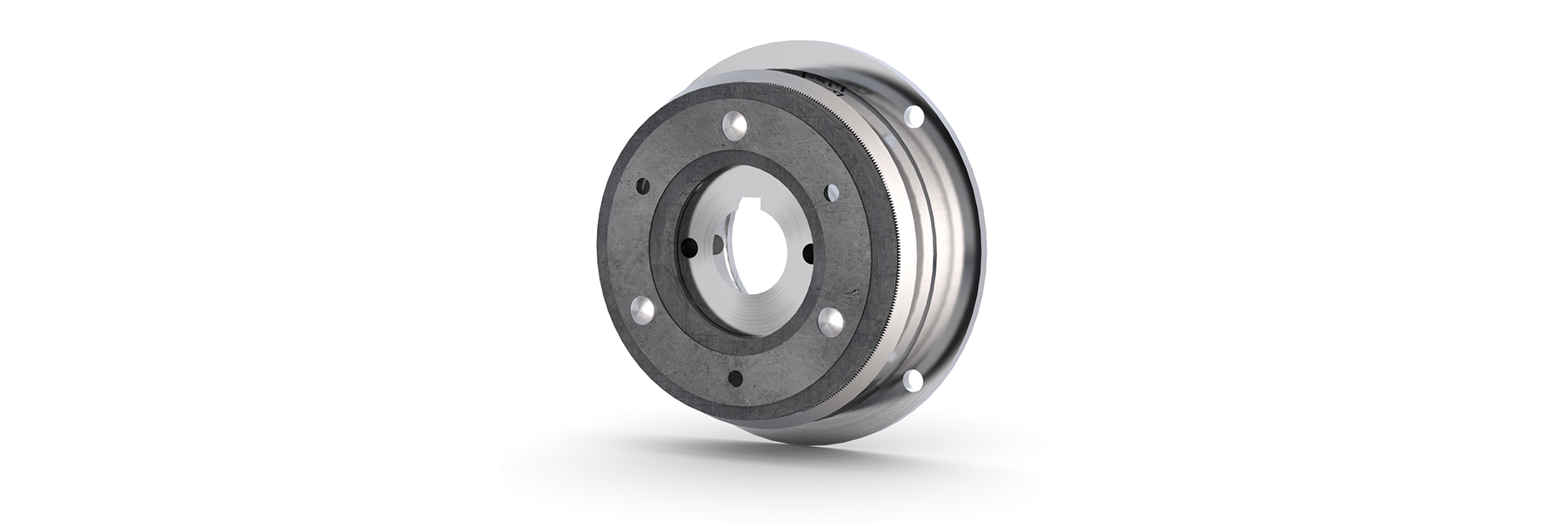

Like the COMBINORM C, the operating current clutch COMBINORM T engages when electrically powered. However, this device is designed as an electromagnetically operated tooth clutch. Through the positive connection, particularly large torques are transmitted in both directions within a small space by restricting the speed of incidence. In the process, torque is applied by the leading faces of hardened serrations and is backlash-free.
The electromagnetic tooth clutch has a torque range of 21 Nm to 390 Nm.
Highlights
- 5 sizes
- Backlash free
- ISO class B in accordance with VDE 0580
- Designed for S1 operation or 100 % duty cycle
- Wide temperature and voltage range
- Standard voltage 24V
DO YOU HAVE ANY QUESTIONS? WE WILL BE HAPPY TO HELP YOU!
Simply send us a message via our contact form.
Contact us nowOptions
If the COMBINORM T standard flange does not fit the installation situation, it can be adapted in KEB’s in-house production process.
Changes can be made e.g. to the geometry, bore hole pattern, through holes, bolt circle arrangement, mounting slots and a bearing seat recess can be added.
If it is intended that the end products will also be used on the Canadian or American market, the relevant certification can be obtained for the COMBINORM T.
The COMBINORM T version with a hub on the outside is the version that is easiest to install.
In this case, the armature is attached to the shaft to be coupled outside the magnet casing.
The COMBINORM T without a hub is the version with the shortest axis.
In this case, the armature part is mounted directly on the mounting surface, e.g. the pinion, belt pulley or shaft end to be coupled.
If the application requires a modified voltage, a customised coil with the corresponding voltage can be realised in the internal production process.
If the assembly process of the brake has to be simplified, our products can be equipped with ready-to-connect cables with plugs, contacts or even wire end ferrules.
A factory certificate 2.1 according to DIN EN 10204 that the delivered products comply with the agreements at the time of order can be provided at the customer's request. This certificate is issued based on non-specific testing. Also, an acceptance test certificate 3.1 according to DIN EN 10204 can be issued at the customer's request. In this case, the confirmation is given with the results of specific tests, such as the torque test.
TECHNICAL DATA
| Size | Rated torque M2 [Nm] | Standard power [W] | Diameter [mm] | max. Rotor bore [mm] | max. Hub bore [mm] |
| 06 | 21 | 15 | 80 | 18 | 18 |
| 07 | 45 | 20 | 100 | 22 | 22 |
| 08 | 90 | 28 | 125 | 30 | 30 |
| 09 | 195 | 35 | 150 | 35 | 35 |
| 10 | 390 | 50 | 190 | 45 | 45 |
Standard voltage: 24 V | Special voltage: on request
