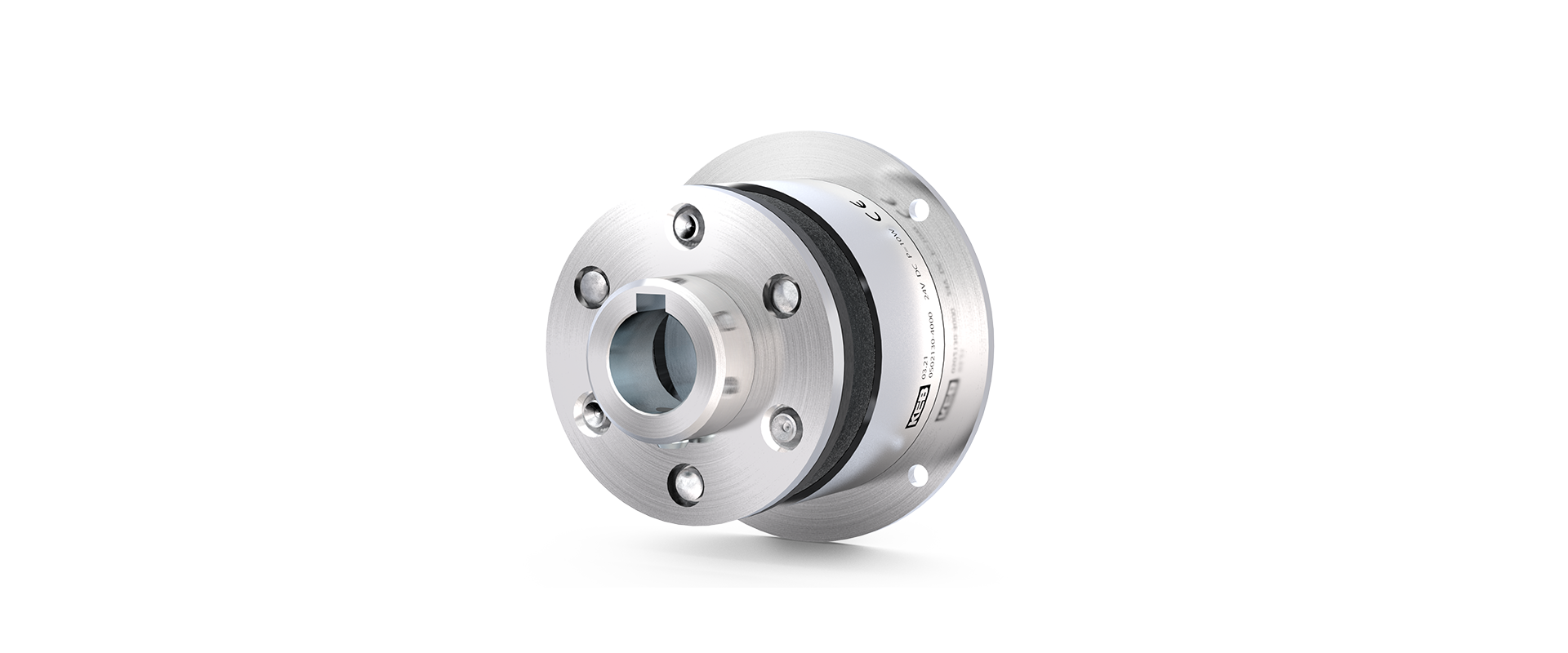

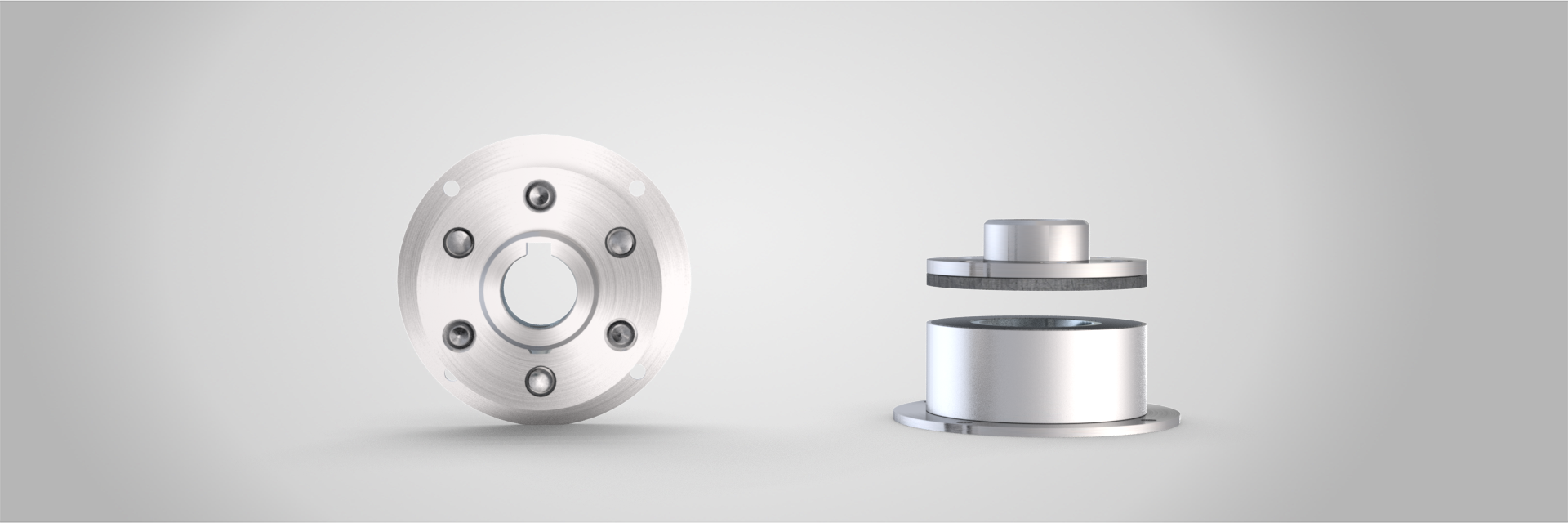

ELECTROMAGNETIC BRAKE

COMBINORM B

The operating current brake COMBINORM B opens when the power supply is switched off or in the event of a power failure. The electromagnetic brake is particularly suitable for precise positioning and reliable holding. It is also used in safety and access technology, e.g. in the area of access barriers or fire doors. The electromagnetic brake is designed for a 100 % duty cycle and can optionally be certified to VdS.

The electromagnetic brake has a torque range of 0.5 Nm to 500 Nm.

Highlights

  • 13 sizes
  • Short switching times
  • Positioning accuracy and functional reliability
  • CSA/CUS-certified
  • Designed for S1 operation or 100 % duty cycle
  • ISO class B in accordance with VDE 0580
  • Wide temperature and voltage range
  • Continuously adjustable torque
  • Standard voltage 24V

DO YOU HAVE ANY QUESTIONS? WE WILL BE HAPPY TO HELP YOU!

Simply send us a message via our contact form.

Contact us now

Options

If the COMBINORM B standard flange does not fit the installation situation, it can be adapted in KEB’s in-house production process.

Changes can be made e.g. to the geometry, bore hole pattern, through holes, bolt circle arrangement, mounting slots and a bearing seat recess can be added.

If it is intended that the end products will also be used on the Canadian or American market, the relevant certification can be obtained for the COMBINORM B.

If the COMBINORM B is flange-mounted, the magnet is mounted directly on the mounting surface, e.g. the motor endshield, and the armature is attached to the shaft.

If the COMBINORM B has a shaft-mounted design, the magnet, including the mounted armature part, is secured to the shaft. In this case, the magnetic part is fastened to the housing or bearing assembly via the mounting slots in the flange.

In the process, the magnetic part is mounted on the shaft.

The COMBINORM B version with a hub on the outside is the version that is easiest to install.

In this case, the armature is attached to the shaft outside the magnet casing.

At the customer’s request, the hub can be designed both with and without a continuous keyway and threaded holes, with threaded pins in the hub.

The COMBINORM B with hub in the magnet is used for a shorter setup than with the hub on the outside.

At the customer’s request, the hub can be designed both with and without a continuous keyway and threaded holes, with threaded pins in the hub.

The COMBINORM B without a hub is the version with the shortest axis.

In this case, the armature part is mounted directly on the mounting surface, e.g. the pinion, belt pulley or shaft end.

The torque of the COMBINORM B operating current brake can be continuously adjusted by controlling the voltage. An added advantage of this brake is that it enables energy to be saved as the torque depends on the field current and therefore power is also reduced when the torque is lower.

If the application requires a modified voltage, a customised coil with the corresponding voltage can be realised in the internal production process.

If the assembly process of the brake has to be simplified, our products can be equipped with ready-to-connect cables with plugs, contacts or even wire end ferrules.

A factory certificate 2.1 according to DIN EN 10204 that the delivered products comply with the agreements at the time of order can be provided at the customer's request. This certificate is issued based on non-specific testing. Also, an acceptance test certificate 3.1 according to DIN EN 10204 can be issued at the customer's request. In this case, the confirmation is given with the results of specific tests, such as the torque test.

TECHNICAL DATA

SizeRated torque M[Nm]Standard power [W]Bore [mm]max. Hub bore [mm]
010.56396
020.756458
031.585410
053106515
067128020
07151610022
08302112530
09652815035
101303819045
112505023060
125006529070
13*7508035590
14*1250100440100

Standard voltage: 24 V  |  Special voltage: on request
