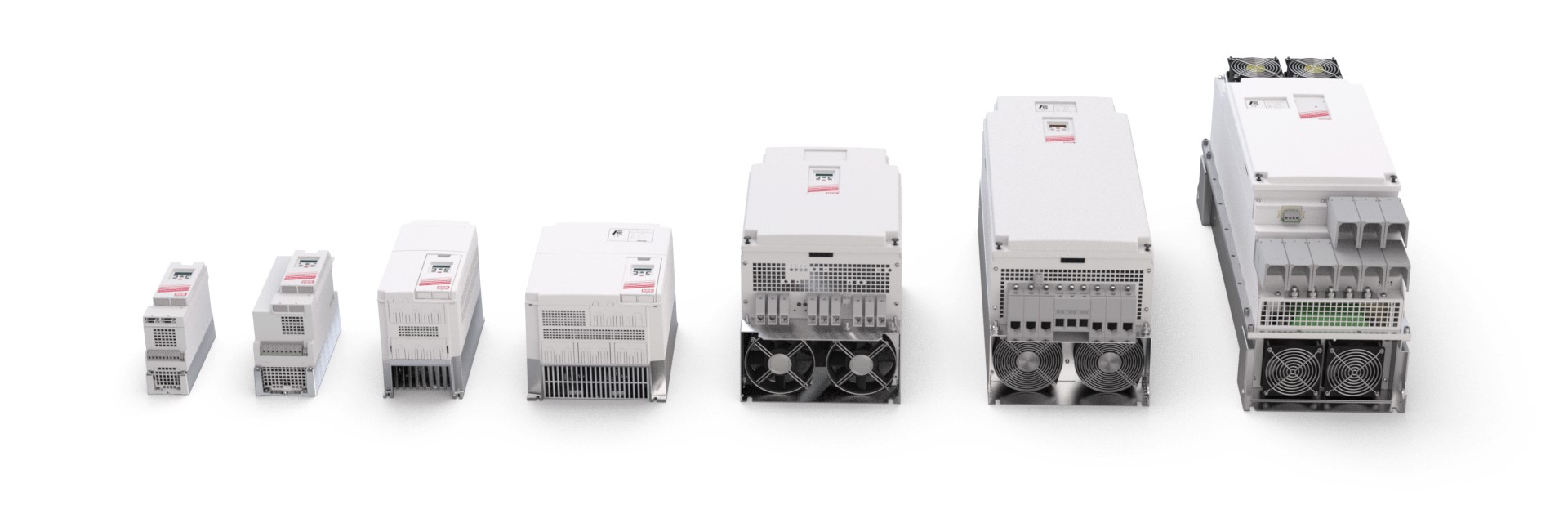

DRIVE CONTROLLER

COMBIVERT F5

The COMBIVERT F5 is the standard drive controller for controlled and regulated applications in demanding mechanical and plant engineering tasks involving power grades up to 900 kW. No matter whether you have an asynchronous three-phase motor or synchronous servo drive, the COMBIVERT F5 frequency inverter takes control.

The modular software meets the highest demands in terms of speed, torque and breakaway torque, with and without encoder feedback. Uniform operation, identical handling and the same tools are great little aids when carrying out practical work during installation, start-up and servicing tasks.

Highlights

  • Can be used in a wide range of applications
  • Functional consistency across the entire power range
  • A wide range of installation types and cooling modes
  • Various options for motors, encoders and communication

DO YOU HAVE ANY QUESTIONS? WE WILL BE HAPPY TO HELP YOU!

Simply send us a message via our contact form.

Contact us now

Technical data

Device variant 1-phase 230 V 3-phase 400 V
Power range 0.37 kW … 2.2 kW 0.37 kW … 90 kW
Rated currents 2.3 A … 10 A 2.3 A … 360 A
Peak currents (60 s) … 1.8 x In … 1.8 x In

Device variant 3-phase 400 V 3-phase 690 V
Power range 0.37 kW … 800 kW 200 kW … 900 kW
Rated currents 1.3 A … 1,450 A 225 A … 1,015 A
Peak currents (60 s) … 1.8 x In … 1.5 x In

Control Analogue/digital or bus communication
Bus communication CANopen, PROFIBUS, Interbus, DeviceNet, Modbus/TCP, EtherNet TCP/IP, EtherCAT, POWERLINK, PROFINET, EtherNet/IP
Parameterisation interfaces Diagnose RS485/232
Display OptionalOptional
Functional Safety STO

Softwarefeatures
U/f functionality
Controlled operation without encoder asynchronous/synchronous machine
Controlled operation with encoder Asynchronous/synchronous machine
Brake handling
DC braking
Customer parameter group
Eight parameter sets, switchable
PID controller
Power-off function
and much more.

Product life cycle status

Documentation

file-icon
3D-Step-Model F5 Housing B
(STEP, 27.12.2016, 11 MB)
file-icon
3D-Step-Model F5 Housing D air-cooled
(STEP, 27.12.2016, 11 MB)
file-icon
3D-Step-Model F5 Housing G air-cooled
(STEP, 27.12.2016, 21 MB)
file-icon
3D-Step-Model F5 Housing G flat rear
(STEP, 27.12.2016, 70 MB)
file-icon
3D-Step-Model F5 Housing H air-cooled
(STEP, 27.12.2016, 17 MB)
file-icon
3D-Step-Model F5 Housing P air-cooled
(STEP, 27.12.2016, 31 MB)
file-icon
3D-Step-Model F5 Housing R air-cooled
(STEP, 27.12.2016, 30 MB)
file-icon
3D-Step-Model F5 Housing U air-cooled
(STEP, 27.12.2016, 12 MB)
file-icon
3D-x_t-Model F5 Housing A
(x_t, 27.12.2016, 4 MB)
file-icon
3D-x_t-Model F5 Housing G flat rear
(x_t, 27.12.2016, 31 MB)
file-icon
F5 Housing P
(x_t, 27.05.2019, 15 MB)
file-icon
Energy Efficiency 07F5 Housing B
(pdf, 13.04.2018, 129 KB)
file-icon
Energy Efficiency 07F5 Housing D
(pdf, 14.05.2018, 126 KB)
file-icon
Energy Efficiency 09F5 Housing B
(pdf, 14.05.2018, 129 KB)
file-icon
Energy Efficiency 10F5 Housing B
(pdf, 15.05.2018, 129 KB)
file-icon
Energy Efficiency 10F5 Housing D
(pdf, 15.05.2018, 126 KB)
file-icon
Energy Efficiency 12F5 Housing D
(pdf, 15.05.2018, 126 KB)
file-icon
Energy Efficiency 12F5 Housing E
(pdf, 15.05.2018, 126 KB)
file-icon
Energy Efficiency 13F5 Housing D
(pdf, 15.05.2018, 126 KB)
file-icon
Energy Efficiency 13F5 Housing E
(pdf, 15.05.2018, 126 KB)
file-icon
Energy Efficiency 14F5 Housing D
(pdf, 15.05.2018, 126 KB)
file-icon
Energy Efficiency 14F5 Housing E
(pdf, 15.05.2018, 126 KB)
file-icon
Energy Efficiency 14F5 Housing G
(pdf, 15.05.2018, 127 KB)
file-icon
Energy Efficiency 15F5 Housing E
(pdf, 15.05.2018, 126 KB)
file-icon
Energy Efficiency 15F5 Housing G
(pdf, 15.05.2018, 127 KB)
file-icon
Energy Efficiency 15F5 Housing H
(pdf, 15.05.2018, 132 KB)
file-icon
Energy Efficiency 16F5 Housing E
(pdf, 15.05.2018, 126 KB)
file-icon
Energy Efficiency 16F5 Housing G
(pdf, 15.05.2018, 127 KB)
file-icon
Energy Efficiency 16F5 Housing H
(pdf, 15.05.2018, 132 KB)
file-icon
Energy Efficiency 17F5 Housing G
(pdf, 19.11.2019, 127 KB)
file-icon
Energy Efficiency 17F5 Housing H
(pdf, 19.11.2019, 132 KB)
file-icon
Energy Efficiency 18F5 Housing H
(pdf, 19.11.2019, 132 KB)
file-icon
Energy Efficiency 19F5 Housing H
(pdf, 15.05.2018, 132 KB)
file-icon
Energy Efficiency 19F5 Housing R
(pdf, 15.05.2018, 129 KB)
file-icon
Energy Efficiency 20F5 Housing H
(pdf, 15.05.2018, 132 KB)
file-icon
Energy Efficiency 20F5 Housing R
(pdf, 15.05.2018, 129 KB)
file-icon
Energy Efficiency 21F5 Housing R
(pdf, 15.05.2018, 129 KB)
file-icon
Energy Efficiency 22F5 Housing R
(pdf, 15.05.2018, 129 KB)
file-icon
Energy Efficiency 23F5 Housing R
(pdf, 15.05.2018, 129 KB)
file-icon
Energy Efficiency 23F5 Housing U
(pdf, 15.05.2018, 115 KB)
file-icon
Energy Efficiency 24F5 Housing R
(pdf, 15.05.2018, 129 KB)
file-icon
Energy Efficiency 24F5 Housing U
(pdf, 15.05.2018, 115 KB)
file-icon
EPLAN F5
V03
(zip, 26.02.2017, 10 MB)
file-icon
EPLAN F5 NFPA
V01
(zip, 16.04.2018, 492 KB)
file-icon
Application manual F5 Basic, Compact, General V3.2
(pdf, 06.10.2016, 4 MB)
file-icon
Application manual F5 Software 4.5
R1b
(pdf, 01.03.2019, 15 MB)
file-icon
General Safety Instructions
V02
(pdf, 06.04.2020, 1 MB)
file-icon
GENERAL SAFETY INSTRUCTIONS
V02
(pdf, 06.04.2020, 5 MB)
file-icon
Installation F5 housing U 28F5EAU-Y11H
V00
(pdf, 04.12.2020, 1 MB)
file-icon
Installation F6 housing 3
V05
(pdf, 24.05.2024, 5 MB)
file-icon
Installation KTY monitoring
V05
(pdf, 19.11.2020, 2 MB)
file-icon
installation manual elevator drive f5
Pre-series available by sales support
(pdf, 26.06.2017, 5 MB)
file-icon
Installation manual elevator drive f5 V3.32
Pre-series available by sales support
(pdf, 10.07.2019, 11 MB)
file-icon
Installation manual F5 Housing B
V1D
(pdf, 27.04.2020, 3 MB)
file-icon
Installation manual F5 Multi V3.2
V2E
(pdf, 05.01.2017, 2 MB)
file-icon
Installation manual F5 Servo V3.2
V2E
(pdf, 05.01.2017, 2 MB)
file-icon
Installation manual F5/F6 Housing D
V1E
(pdf, 10.07.2017, 2 MB)
file-icon
Installation manual F5/F6 Housing E
V1E
(pdf, 10.07.2017, 2 MB)
file-icon
Installation manual F5/F6 Housing G
Rev.1E
(pdf, 11.04.2023, 3 MB)
file-icon
Installation manual F5/F6 Housing H
V1I
(pdf, 10.07.2017, 5 MB)
file-icon
Installation manual F5/F6 housing P
V02
(pdf, 16.02.2023, 11 MB)
file-icon
Installation manual F5/F6 Housing R
V2K
(pdf, 18.03.2019, 5 MB)
file-icon
Installation manual F5/F6 Housing U
V2N
(pdf, 02.09.2020, 4 MB)
file-icon
Installation manual F5/F6 Housing W
V2F
(pdf, 31.03.2020, 5 MB)
file-icon
Instructions for use F5 AFE
V04
(pdf, 11.08.2021, 5 MB)
file-icon
Manual EMC and Safety instructions
V1A
(pdf, 01.01.1970, 2 MB)
file-icon
Manual F5 ASCL
V1B
(pdf, 27.05.2019, 3 MB)
file-icon
Manual F5 Elevator Drive
(pdf, 28.12.2016, 3 MB)
file-icon
Manual F5 Elevator V2.2
V1D
(pdf, 17.02.2020, 2 MB)
file-icon
Manual F5 Elevator V3.21
V1E
(pdf, 21.02.2017, 3 MB)
file-icon
Manual F5 Elevator V3.31
V1A
(pdf, 21.02.2018, 12 MB)
file-icon
Manual F5 HSP5/485-Operator
(pdf, 08.01.2017, 725 KB)
file-icon
Manual F5 InterBus Operator V7.1
v00
(pdf, 13.06.2017, 701 KB)
file-icon
Manual F5 LCD operator
V00
(pdf, 08.01.2017, 3 MB)
file-icon
Manual F5 ModBus Operator
V00
(pdf, 16.05.2017, 421 KB)
file-icon
Manual F5 Operator CAN
v01
(pdf, 13.02.2018, 1 MB)
file-icon
Manual F5 Operator Devicenet
V00
(pdf, 17.02.2020, 532 KB)
file-icon
Manual F5 Operator EtherCAT
V02
(pdf, 21.04.2017, 1 MB)
file-icon
Manual F5 Operator Ethernet
V00
(pdf, 09.01.2017, 647 KB)
file-icon
Manual F5 Operator Ethernet IP
V1A
(pdf, 17.02.2020, 1 MB)
file-icon
Manual F5 Operator Powerlink
V01
(pdf, 09.01.2017, 3 MB)
file-icon
Manual F5 Operator Profibus
V01
(pdf, 09.01.2017, 850 KB)
file-icon
Manual F5 Operator Profinet
v03
(pdf, 28.03.2018, 1 MB)
file-icon
Manual F5 SCL
(pdf, 25.05.2018, 1 MB)
file-icon
Manual F5 SPS-Operator on PROFIBUS DP
V1A
(pdf, 10.01.2017, 663 KB)
file-icon
Manual HSP5/485-Operator
(pdf, 09.01.2017, 666 KB)
file-icon
Manual SERCOS Operator V2.1
v00
(pdf, 08.06.2017, 676 KB)
file-icon
Manual SERCOS Operator V2.2
v00
(pdf, 09.06.2017, 717 KB)
file-icon
Programming manual F6 control Application/Compact/Pro 2.7
V01
(pdf, 18.11.2020, 13 MB)
file-icon
Quick start F5 Elevator V1.72
V1B
(pdf, 03.09.2017, 607 KB)
file-icon
Quick start F5 Elevator V3.00
V0A
(pdf, 03.09.2017, 1 MB)
file-icon
Safety manual Safety module type 5
V02
(pdf, 01.12.2020, 6 MB)
file-icon
Supplement Power Unit F5/F6 Housing P
V00
(pdf, 10.07.2017, 3 MB)
