Power supply and regeneration units and active infeed converters

COMBIVERT R6 / H6-AIC / F5-AIC

Motor movement and regenerative processes take place in electric machines in order to ensure defined machine cycles. The generated energy is often burned up by braking resistors. KEB’s power supply and regeneration systems offer energy-optimised solutions for power compensation within a system, or direct regeneration of excess power in the supplying network.

DO YOU HAVE ANY QUESTIONS? WE WILL BE HAPPY TO HELP YOU!

Simply send us a message via our contact form.

Contact us now
Power supply systems / Regeneration systems COMBIVERT R6

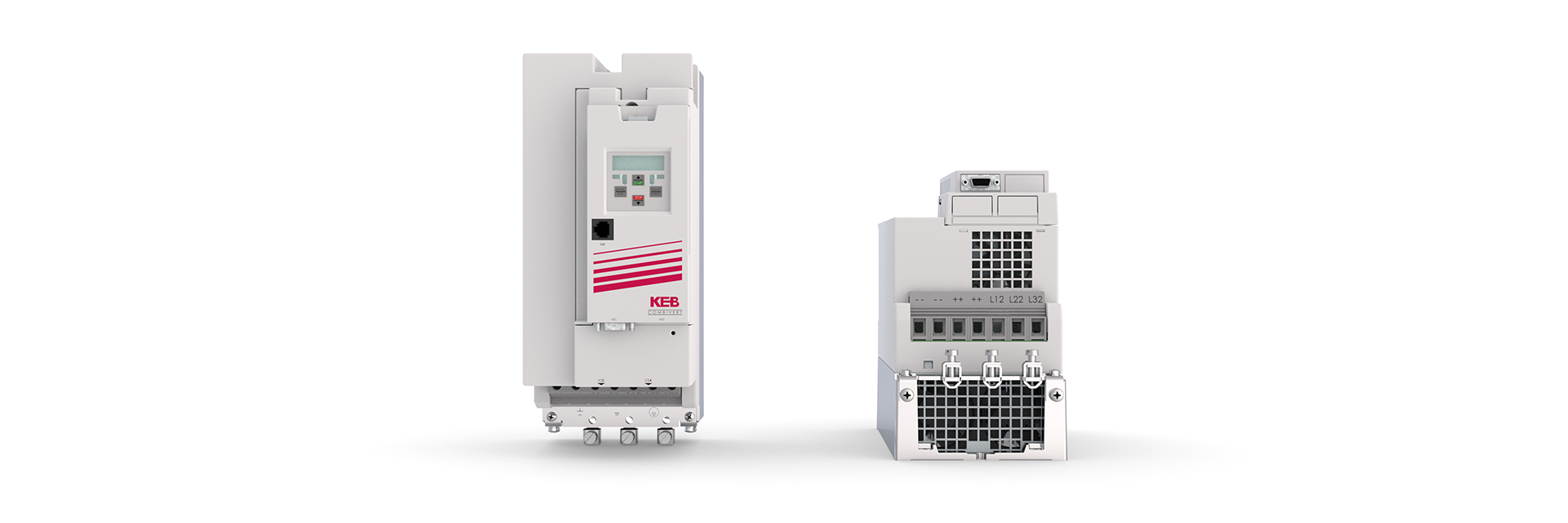

COMBIVERT R6

Power supply systems/Regeneration systems

You can find out more about the technical data of
COMBIVERT R6 power supply and regeneration systems here

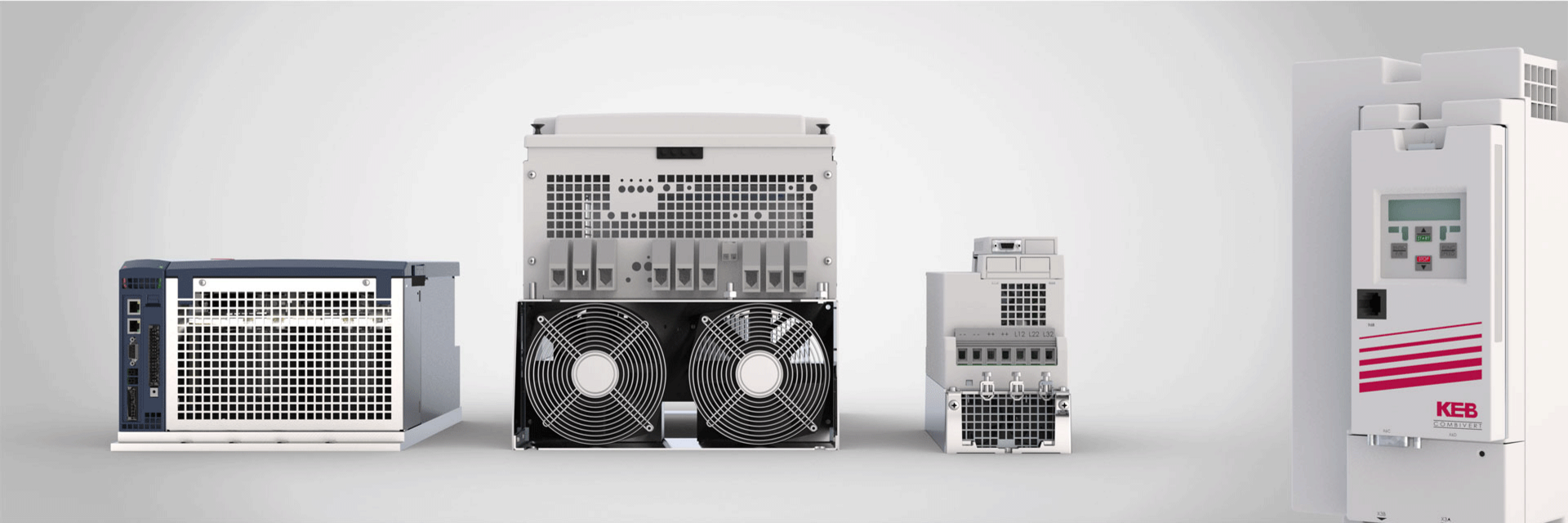

COMBIVERT R6

Active-Infeed-Converter COMBIVERT H6-AIC

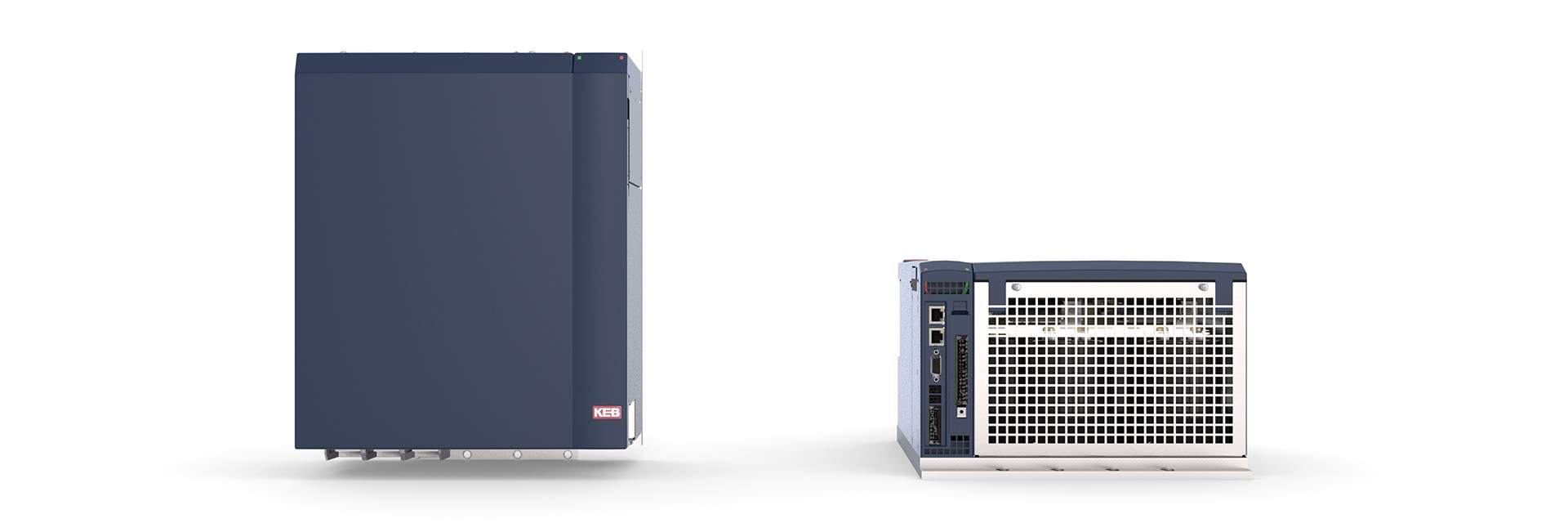

COMBIVERT H6-AIC

ACTIVE-INFEED-CONVERTER

You can find out more about the technical data of the
COMBIVERT H6 AIC active infeed converter here

COMBIVERT H6-AIC

Active-Infeed-Converter COMBIVERT F5-AIC

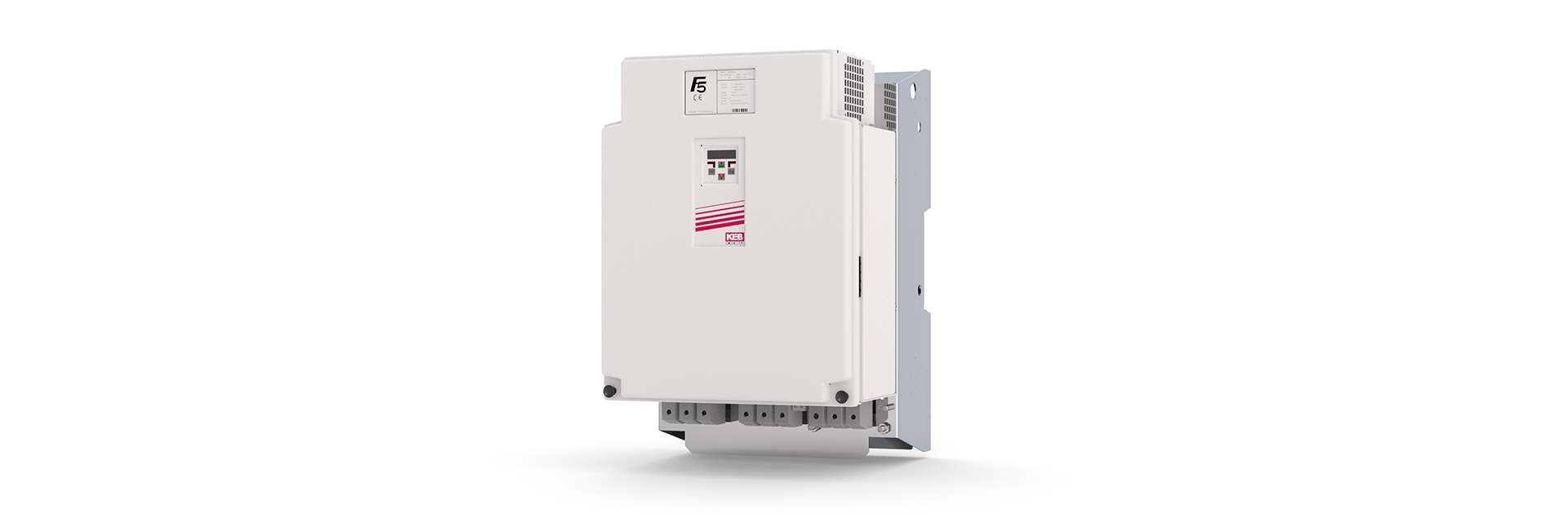

COMBIVERT F5-AIC

ACTIVE-INFEED-CONVERTER

You can find out more about the technical data of the
COMBIVERT F5-AIC active infeed converter here

COMBIVERT F5-AIC

COMBIVERT R6

Power supply and regeneration units

The R6 is a compact and cost-effective power supply and regeneration unit for industrial requirements. The mains-driven technology provides an unregulated, mains-dependent DC voltage for the DC supply.

Highlights

  • A compact and cost-effective solution for the centralised supply and release of generated energy
  • Mains-driven power supply and regeneration unit
  • Can be used for the DC supply of several drives
  • High overload and regeneration in continuous operation
  • Can be combined with harmonic filters to ensure good network quality and reduced reactive power
  • Replaces braking resistors, reducing the risk of fire
  • Possible to operate several units in parallel
  • Also suitable for inverters made by third-party manufacturers



Technical data

Device variant COMBIVERT R6 3-phase 230 V 3-phase 400 V / 480 V
Regenerative power 10 kVA … 70 kVA 18 kVA … 934 kVA
Rated currents (DC) 32 A … 3 x 80 A 32 A … 3 x 590 A
Peak currents (60 s) … 2 x In … 2 x In

Product life cycle status

Documentation

file-icon
EU Declaration of Conformity R5
R0C
(pdf, 04.01.2019, 336 KB)
file-icon
EU Declaration of Conformity R6
R0H
(pdf, 12.07.2017, 336 KB)
file-icon
UK Declaration of Conformity R5
R0A
(pdf, 17.10.2022, 454 KB)
file-icon
UK Declaration of Conformity R6
R0A
(pdf, 17.10.2022, 454 KB)
file-icon
EPLAN R6
V01
(zip, 26.12.2016, 3 MB)
file-icon
EPLAN R6 NFPA
V01
(zip, 16.04.2018, 37 KB)
file-icon
Application manual R6-S 1.4
Rev.1B
(pdf, 13.08.2018, 4 MB)
file-icon
Installation manual R5-C Power Supply Unit
Rev.1D
(pdf, 15.09.2020, 1 MB)
file-icon
Installation manual R6-N Housing E
v03
(pdf, 26.08.2022, 3 MB)
file-icon
Installation manual R6-S Housing E
v00
(pdf, 21.09.2022, 3 MB)
file-icon
Installation manual R6-S Housing P
Rev.1L
(pdf, 28.08.2018, 4 MB)
file-icon
Installation manual R6-S Housing R
Rev.1N
(pdf, 28.08.2018, 3 MB)
file-icon
Installation manual R6-S Housing R v2
v01
(pdf, 24.02.2023, 3 MB)
file-icon
Instructions for use F5 AFE
V04
(pdf, 11.08.2021, 5 MB)
file-icon
Programming Active Front End Housing V
V02
(pdf, 08.12.2017, 4 MB)
file-icon
Programming manual F5 AFE
V01
(pdf, 12.10.2021, 2 MB)
file-icon
Programming manual R6-N 1.3
V01
(pdf, 09.12.2019, 4 MB)
file-icon
Setup COMBIVIS (version 6.7.1)
(exe, 13.04.2022, 2 GB)
file-icon
Software Protocol monitor
4.1
(zip, 03.09.2017, 654 KB)

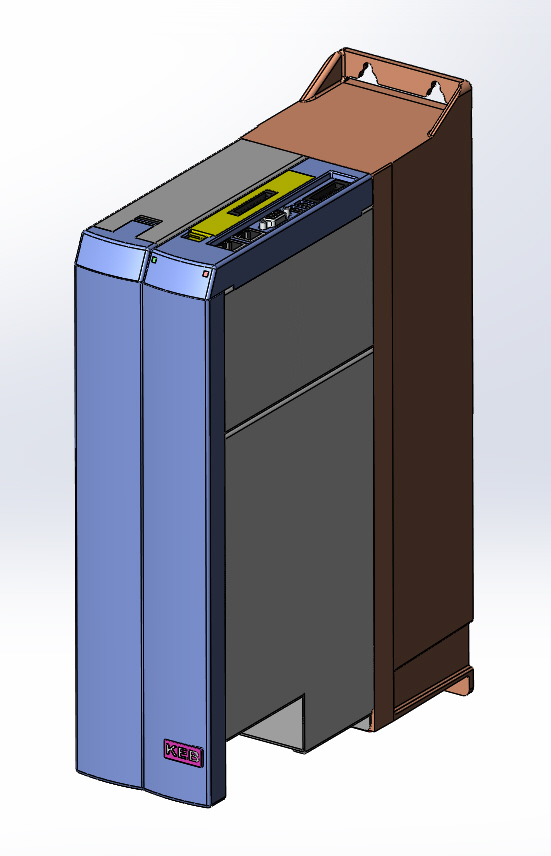

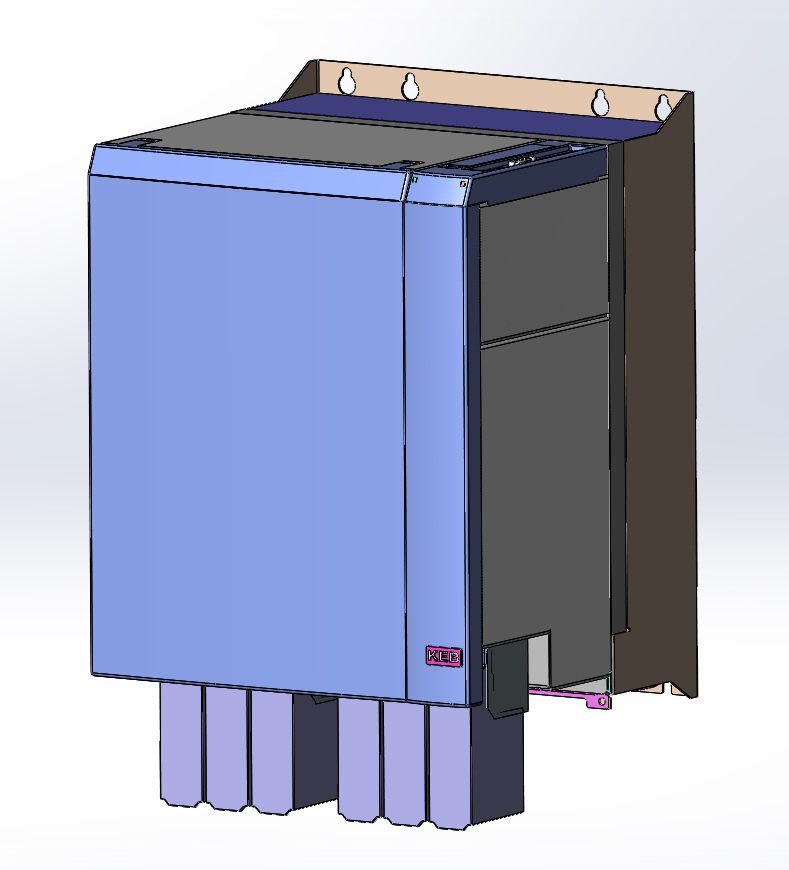

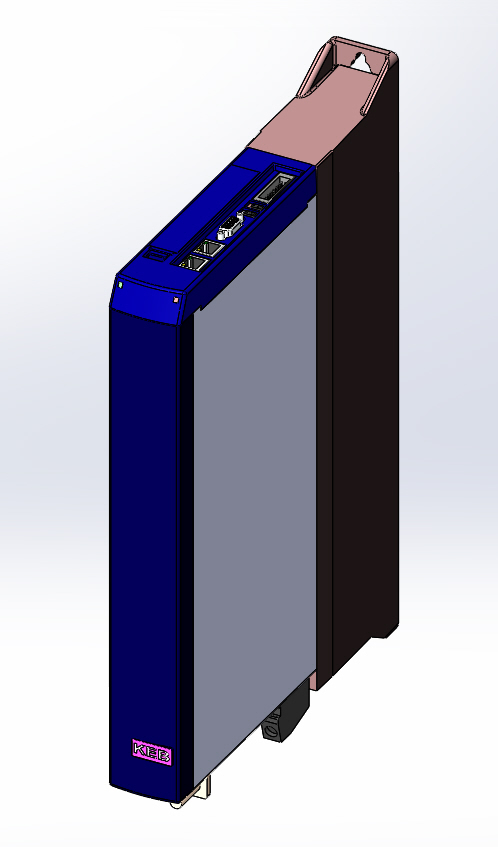

COMBIVERT H6-AIC

ACTIVE-INFEED-CONVERTER

The COMBIVERT H6 AIC provides sinusoidal network supply and network regeneration with “PFC” (power factor correction) and acts as a voltage boost converter. It can be used in applications with a temporary or continuous mains supply when regeneration and a stabilised, controllable intermediate circuit voltage is required. The increased DC intermediate circuit voltage results in an extended speed range and therefore more torque in the field weakening range.

Highlights

  • Central power supply and regeneration for the H6 multi-axis system
  • Sinusoidal supply and regeneration with reactive power compensation
  • Power factor correction (PFC) and cos φ regulation
  • High-quality filter systems with common mode rejection
  • Stabilised, controlled DC voltage
  • Boost converter function and intermediate circuit stabilisation for improved motor efficiency → extended speed range and more torque in the field weakening range



Technical data

Device variant COMBIVERT H6-AIC 3-phase 400 V
Power 11 kVA … 173 kVA
Rated currents (DC) 16.5 A … 250 A
Peak currents (60 s) … 2 x In

Product life cycle status

Documentation

file-icon
DXF-Drawing H6 100mm Supply Module
(dxf, 27.05.2019, 839 KB)
file-icon
DXF-Drawing H6 300mm Supply Module
(dxf, 27.05.2019, 1 MB)
file-icon
G0H6000-C024 KEB-COMBIVERT
(STEP, 27.05.2019, 5 MB)
file-icon
H6 100mm AFE
(dxf, 27.05.2019, 655 KB)
file-icon
H6 100mm AFE Heat sink
(jpg, 27.05.2019, 111 KB)
file-icon
H6 100mm AFE Heat sink
(STEP, 27.05.2019, 4 MB)
file-icon
H6 200mm AFE
(dxf, 27.05.2019, 666 KB)
file-icon
H6 300mm AFE
(dxf, 27.05.2019, 1 MB)
file-icon
H6 50mm Charging
(dxf, 27.05.2019, 1 MB)
file-icon
CCC Declaration
01/23
(pdf, 20.04.2017, 369 KB)
file-icon
EU Declaration of Conformity H6
R0G
(pdf, 21.02.2020, 336 KB)
file-icon
UK Declaration of Conformity H6
R0A
(pdf, 17.10.2022, 454 KB)
file-icon
EPLAN H6
V01
(zip, 26.12.2016, 16 MB)
file-icon
EPLAN H6 NFPA
V01
(zip, 16.04.2018, 137 KB)
file-icon
Installation H6 Rectifier Module
V03
(pdf, 07.01.2020, 6 MB)
file-icon
Manual C5/6, H6, P6 Interface CAN
V1A
(pdf, 17.02.2020, 593 KB)
file-icon
Programming Manual H6 Rectifier Module FW 1.2
V01
(pdf, 04.03.2019, 1 MB)
file-icon
Programming manual H6 supply unit 1.1
V00
(pdf, 21.08.2017, 1 MB)
file-icon
Quick start guide H6
V01
(pdf, 12.07.2019, 1 MB)

COMBIVERT F5-AIC

ACTIVE-INFEED-CONVERTER

The COMBIVERT F5 AIC provides sinusoidal network supply and network regeneration with “PFC” (power factor correction) and acts as a voltage boost converter. It can be used in applications with a temporary or continuous mains supply when regeneration and a stabilised, controllable intermediate circuit voltage is required. The increased DC intermediate circuit voltage results in an extended speed range and more torque in the field weakening range.

Highlights

  • Central supply and regeneration for universal applications
  • Sinusoidal supply and regeneration with reactive power compensation
  • Power factor correction (PFC) and cos φ regulation
  • High-quality filter systems with common mode rejection
  • Stabilised, controlled DC voltage
  • Boost converter function and intermediate circuit stabilisation for improved motor efficiency → extended speed range and more torque in the field weakening range
  • Can also be used with devices made by other manufacturers

Technical data

Device variant COMBIVERT F5-AIC 3-phase 400 V
Input power 11 kVA … 1005 kVA
Rated currents (DC) 16.5 A … 1,450 A
Peak currents (30 s) … 1.8 x In

Product life cycle status

Documentation

file-icon
EU Declaration of Conformity R6
R0H
(pdf, 12.07.2017, 336 KB)
file-icon
UK Declaration of Conformity R6
R0A
(pdf, 17.10.2022, 454 KB)
file-icon
EPLAN R6
V01
(zip, 26.12.2016, 3 MB)
file-icon
EPLAN R6 NFPA
V01
(zip, 16.04.2018, 37 KB)
file-icon
Installation manual R6-N Housing E
v03
(pdf, 26.08.2022, 3 MB)
file-icon
Instructions for use F5 AFE
V04
(pdf, 11.08.2021, 5 MB)
file-icon
Programming Active Front End Housing V
V02
(pdf, 08.12.2017, 4 MB)
file-icon
Programming manual F5 AFE
V01
(pdf, 12.10.2021, 2 MB)
file-icon
Programming manual R6-N 1.3
V01
(pdf, 09.12.2019, 4 MB)
file-icon
Download F5 AFE Filter
(zip, 11.05.2018, 15 KB)
file-icon
Download H6 AFE Filter
(zip, 20.12.2017, 6 KB)
file-icon
Setup COMBIVIS (version 6.7.1)
(exe, 13.04.2022, 2 GB)

Technology

Energy recovery

Rather than burning energy, why not harness it? With energy supply and recovery systems from our product range, machine and plant manufacturers are already optimising new machines during the design phase or creating a second phase of use for existing systems in retrofit manufacturing.

Energy recovery technology

EtherCat

EtherCAT is a global field bus standard that is suitable for all applications. Field bus communication, including safety technology, combines performance with universal availability – and is impressive due to its widespread market acceptance. Inexpensive and easy to implement, EtherCAT is the quickest industrial Ethernet technology. The communication profiles CAN over EtherCAT (CoE) and Ethernet over EtherCAT (EoE), as well as the CiA402 drive profile (IEC 61800-7), are integrated. Functional safety is also an integral component via FailSafe over EtherCAT (FSoE).

EtherCAT at a glance

Profinet

The drive profile according to CiA402 provides a standardised platform for drive controller-based automation. This is achieved by means of the modes of operation specified in the profile, in particular through the Profile Position Mode. The resulting relief of the PLC and cost optimisation with direct, undelayed access to the application enable economical and high-quality application solutions – consistent and manufacturer-independent.

About PROFINET technology

In use in these areas of application

MATERIAL HANDLING

Whether warehouse logistics or cranes, speed and flexibility are essential in material handling. KEB ensures a smooth flow of goods and materials in this area.

Wind energy

Certified pitch and yaw solutions ensure that the wind always comes from the right direction. To date, KEB has equipped over 40,000 wind turbines around the world with its solutions.
