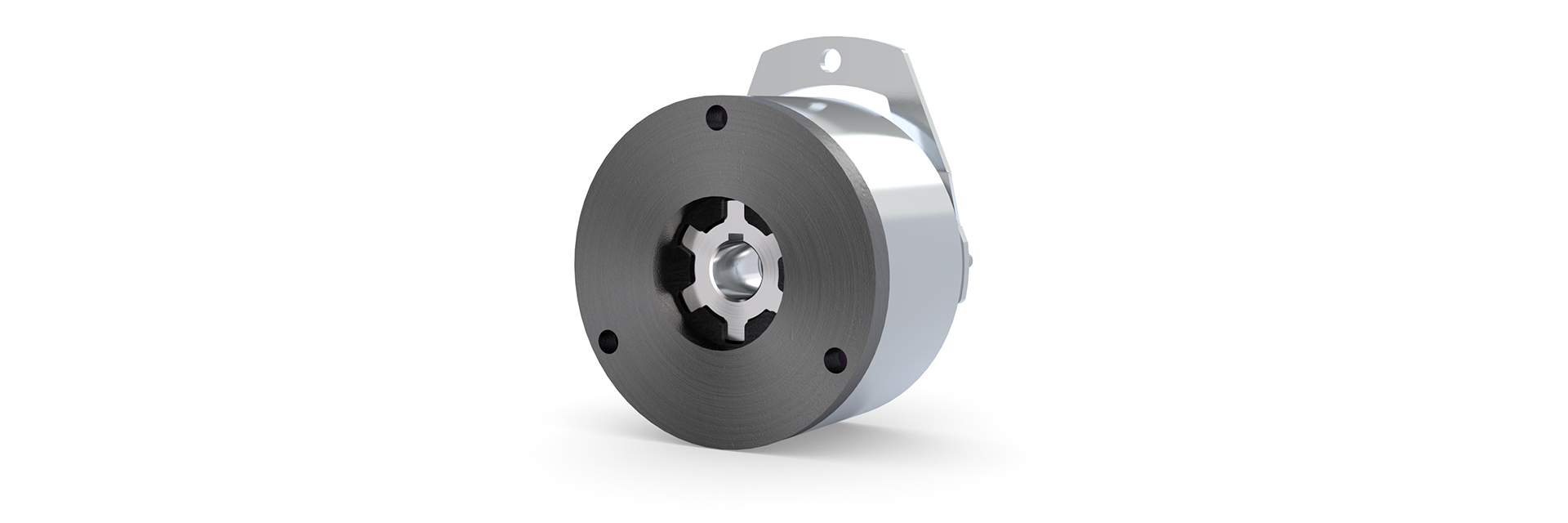

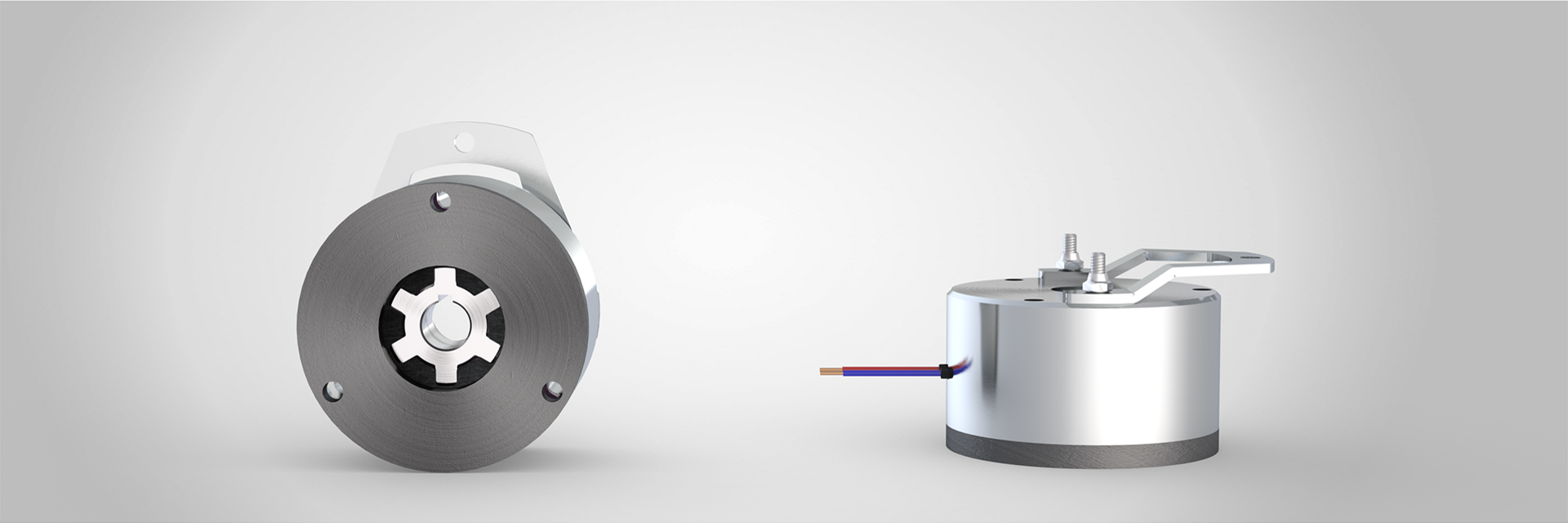

The COMBISTOP type 08 is KEB’s mini-series of closed-current spring-applied brakes. This brake solution is characterised by a particularly compact construction, and is designed for small loads. The type 08 can be used as a service brake for dynamic applications, and as a holding brake with an emergency stop function for static applications.
The mini brake has a torque range of 0.3 Nm to 2 Nm.
- Two sizes
- Ready to install, adjusted air gap
- Used as a service brake or holding brake
- ISO class B in accordance with VDE 0580
- Designed for S1 operation or 100 % duty cycle
- Standard voltages 24 / 105 / 180 / 205V

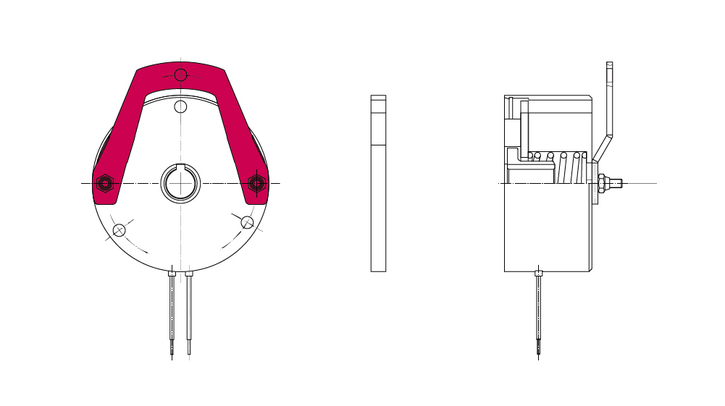

The COMBISTOP 08 can optionally be equipped with a hand release so that it can be opened manually.
The benefits of this are most obvious in de-energised situations when the application still needs to be moved. Even if a rotor is worn, the brake can be released with the hand release.
The COMBISTOP 38 can be sealed with a sealing plug against the external environment.
The COMBISTOP 08 can optionally be equipped with a flange.
If the motor endshield lacks the appropriate properties, such as material quality or evenness, a flange provides an optimal counter-friction surface.
The COMBISTOP 08 is available in a CCV design for use in particularly harsh and cold environments. Temperatures as low as -40°C are therefore no problem for the brake.
If the braking torque needs to be modified for the application, the torque can be increased or reduced according to the customer’s specifications during the internal production process.
If the application requires a modified voltage, a customised coil with the corresponding voltage can be realised in the internal production process.
If the assembly process of the brake has to be simplified, our products can be equipped with ready-to-connect cables with plugs, contacts or even wire end ferrules.
A factory certificate 2.1 according to DIN EN 10204 that the delivered products comply with the agreements at the time of order can be provided at the customer's request. This certificate is issued based on non-specific testing. Also, an acceptance test certificate 3.1 according to DIN EN 10204 can be issued at the customer's request. In this case, the confirmation is given with the results of specific tests, such as the torque test.
|Size||Reduced torque [Nm]min||Rated torque M2 [Nm]||Increased torque* [Nm]max||Standard power [W]||Bore [mm]||max. Hub bore [mm]|
|00||0.5||1||2||11 … 15||59.5||10|
*Holding brake with emergency stop function
Standard voltage: 24 V, 105 V, 180 V, 205 V | Standard voltage: on request
