KEB AUTOMATION AT INTERLIFT 2025

Drive solutions for elevators and escalators

The interlift in Nuremberg, as the world's leading trade fair, is the first address when it comes to elevator technology. And KEB Automation will also be there this year as system provider of drive and automation solutions. We are pleased to present our product highlights for your lift application: From October 14 to 17, 2025 at our booth D504 in hall 1.

Our experts will be pleased to advise you at the interlift – and at any time by e-mail.


Contact us

OUR HIGHLIGHTS FOR YOUR LIFT

Starting in 1988, KEB was one of the first inverter manufacturers to provide variable frequency drives to the Lift market. KEB has continued to be an established partner for elevators and escalators, especially in the US market. At Interlift 2025, KEB Automation will present new products highlights use to drive your lift applications efficiently, safely and with high precision. Here we give you a first overview.

CANopen lift

LIFT DRIVES: COMBIVERT F6 AND S6

The COMBIVERT F6 and S6 Drive Controllers ­– enhanced with special lift functionality. A dedicated software package designed for elevator operation, ensures maximum safety and benefit from additional functionality. The drives are capable of controling geared motors and gearless drives as well as hydraulic drives.

  • Automatic inertia measurement of the entire system
  • One Floor Positioning (Ogive Function)
  • Travel and direction change counters
  • Safe brake monitoring
  • Emergency travel programs in case of earthquakes, evacuations, etc.
  • Easy commissioning via Elevator App on smartphone
  • Universal control via CANopen Lift, DCP, serial, Ethernet, digital parallel, analog and others
  • Time stamped functional and error logs
  • Automatic calibration of motor data
  • STO Sil3
  • Synthetic pre-torque
  • Brake chopper monitoring with safe shutdown
  • Encoderles operation with synchronous motors and much more.

More about the F6 and S6

COMBIVERT R6: Power infeed and regenerative power supply

  • Wide power range up to 1,000 kVA
  • Integrated precharging
  • Universally applicable for three-phase 200 V, 400 V and 480 V supply networks
  • Compatible with third-party equipment

Use energy efficiently now

COMBIVERT G6: The solution for escalators

  • Power range from 0.75 kW to 30 kW
  • Functional consistency over the entire power range
  • Integrated safety technology and line filter
  • Classic controlled V/f operation and controlled operation without encoder feedback

To the COMBIVERT G6

COMBILINE E6: The EMC filter

  • Low leakage currents
  • Perfectly suited for operation with modern RCDs, no problems when switched on
  • Compact design in book form with small mounting surface, alternatively as sub-mounting filter
  • High EMC absorption, designed for shielded motor cable lengths up to 100 m respectively 300 m

About EMC Technology

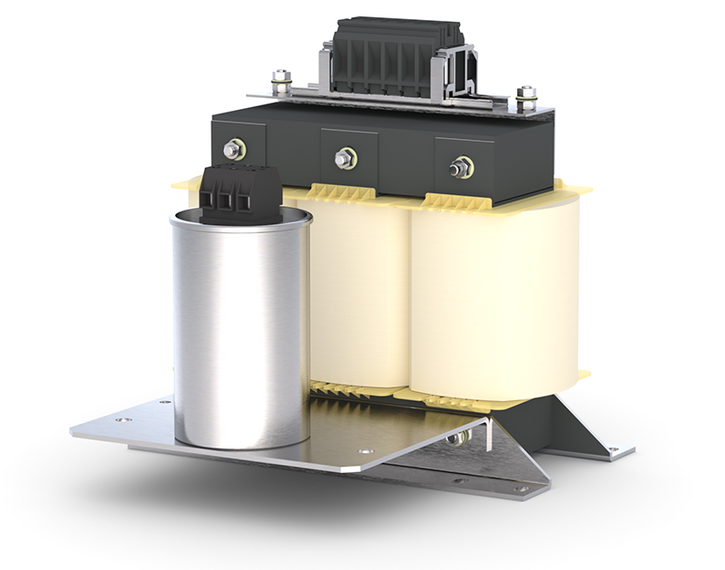

Harmonic filter COMBILINE Z1 – mains side

  • Reduction of THDi to less than 8 % and PWHD to less than 15 % – for clean mains quality
  • High overload capacity up to 150 % and efficiency of over 99 %
  • Compact, ready-to-connect design – no additional wiring required
  • Suitable for multiple parallel loads and for use with dynamic load changes

Filters and chokes from KEB

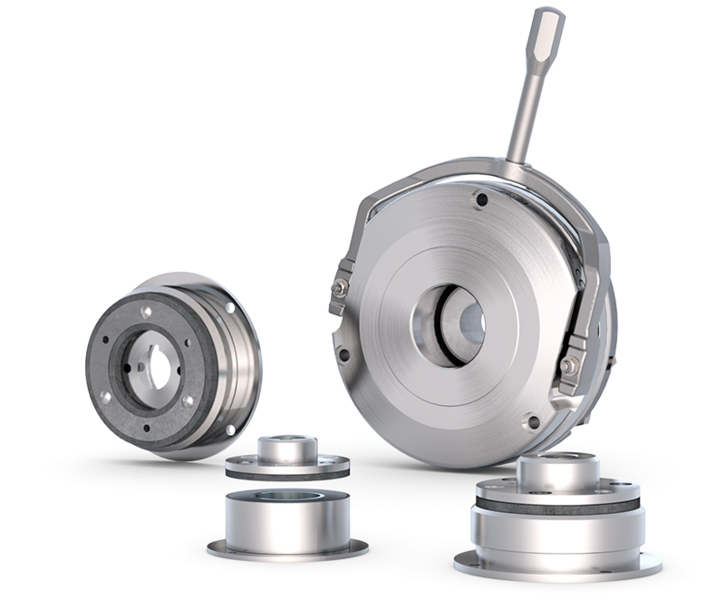

COMBINORM and COMBISTOP 38

COMBINORM & COMBISTOP BRAKES: Precise positioning, safe holding

  • Optimal for use in the door mechanism of elevators or in escalators
  • Different sizes available with short switching times
  • Designed for 100 percent duty cycle
  • Spring-applied brakes for home lift, dumbwaiter and stairlift applications in the portfolio
  • Double brake configurations are available

Go to our brakes and clutches
